1000-Watt, 10" Single-Voice-Coil Subwoofer

Đối với yêu cầu số lượng lớn: Ấn vào đây

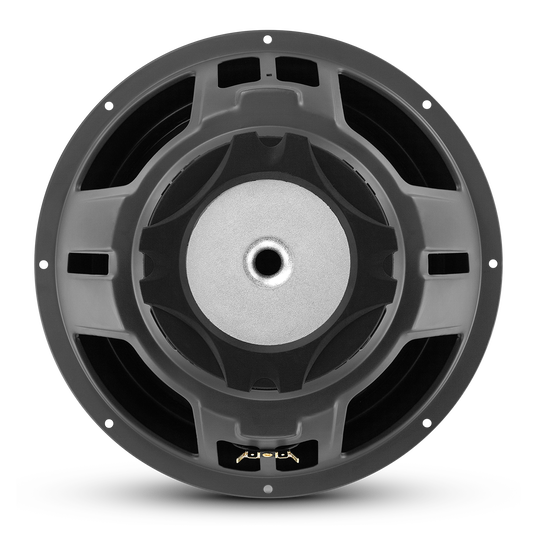

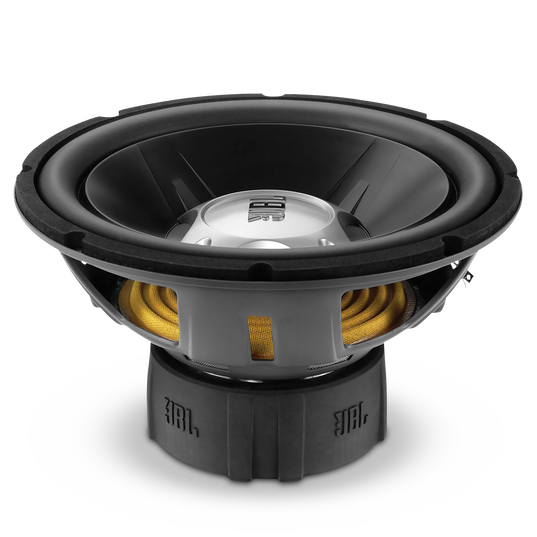

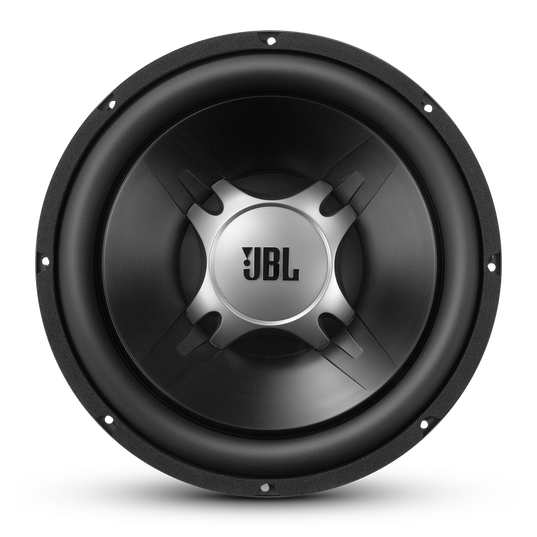

JBL’s GT5-10 features JBL’s newest design, combining classic elements with modern ones. The GT5-10 features a single 4-ohm voice coil and a vented motor structure, and offers 1000 watts of peak power handling. With its fully vented motor structure and rubber-coated tinsel leads, the GT5-10 can withstand even the most intense bass assault. And unlike competing entry-level subwoofers, the GT5-10 is based on a solid motor structure featuring two large magnets covered by the classic JBL® rubber ring.

Mục# GT5-10

thông tin chi tiết

Series GT5
Size 10

thông số kỹ thuật

Peak Power 1000W
Frequency Response 30Hz – 500Hz
Sensitivity (2.83V/1m) 91dB
Nominal Impedance 4 ohms
Power Handling (RMS) 250W
Power Handling (Peak) 1000W

Kích thước

Mounting Depth (mm) 151 External Diameter (in)

Woofer Specifications

Driver Radiating Area (Sd – in2/cm2) 56.3/363
Total Q (Qts) 0.49
Compliance Volume (Vas – ft3 / l) 1.11/31.5
Electrical Q (Qes) 0.54
Suspension Compliance (Cms – ?m/N) 167.3
Motor Force Factor (Bl – Tm) 14.76
Maximum Excursion (Xmax –in/mm) .56/14.2
Voice Coil DC Resistance (Revc – ohms) 4
Mechanical Q (Qms) 6.48
Free-Air Resonance (Fs – Hz) 30
Magnetic Gap Height (Hag – in/mm) 0.315/8
Voice Inductance @ 1kHz (Levc – mH) 2.69
Voice Coil Height (Hvc – in/mm) 1.43/36.4
  • (1) GT5-10 10” Single 4-Ohm Subwoofer
  • (1) Owner's Manual
