JBL AMPCBA600

Club A600

High performance car amplifier

Variations
Đối với yêu cầu số lượng lớn: Ấn vào đây

Tính năng

Compact size

Compact size

The JBL Club A600 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

High and low level input

High and low level input

Speaker-level and low-level inputs allow the Club A600 to integrate with both aftermarket and factory car stereo systems.

Variable crossover and bass boost

Variable crossover and bass boost

Unlike many amplifiers available at similar prices, the JBL Club A600 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.

Low noise and distortion

Low noise and distortion

The Club A600 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

Input Level Control

Input Level Control

When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Full on-board protection

Full on-board protection

On-board circuitry protects the Club A600 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Phase Switch

Phase Switch

This switch changes the input phase to inverted or non-inverted. This is especially helpful as part of system tuning based on the enclosure type and location in the vehicle.

RBC wired remote

RBC wired remote

The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.

Thông số và Tải về

Mục# AMPCBA600

Mô tả sản phẩm

Value engineered car amplifier with JBL power and performance

New high performance JBL Club amplifiers deliver world class JBL power from a compact chassis built to fit in more vehicles, even when space is tight. Available in 4 channel, 5 channel and mono models. Club amps feature variable crossovers and bass boost for precise control and tuning, plus high and low level inputs that let them integrate with most car stereos. An included wired remote bass level control for Mono and 5 channel that can be mounted for convenient volume adjustment from driver seat.

thông tin chi tiết

350 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms) Yes
Class D amp technology Yes
variable low-pass filter (32-320 Hz, 12 dB/octave) Yes
variable bass boost (0-12 dB at 45Hz) Yes
phase switch (0, 180 degrees) Yes
preamp and speaker-level inputs Yes
fuse rating 30A x 2
8-gauge power and ground leads recommended — wiring and hardware not included with amplifier Yes
WxHxD=220mm x 51.3mm x 180mm WxHxD=8-11/16” x 2-1/16" x7-1/8” Yes
600w RMS / 1200W MAX Yes

Trong hộp gồm có

  • 1 x Club A600 mono subwoofer car amplifier
  • 4 x 30A ATO fuses (2 installed, 2 spare)
  • 2 x Bare wire-to-RCA adapters
  • 1 x Remote bass control module
  • 1 x 16.5' Remote control cable (RJ-25 plugs on both ends)
  • 2 x Self-tapping screws for remote (M3 x 15mm)
  • 4 x Mounting screws (M4 x 53mm)
  • 2 x JBL stickers
  • 1 x Owner's manual

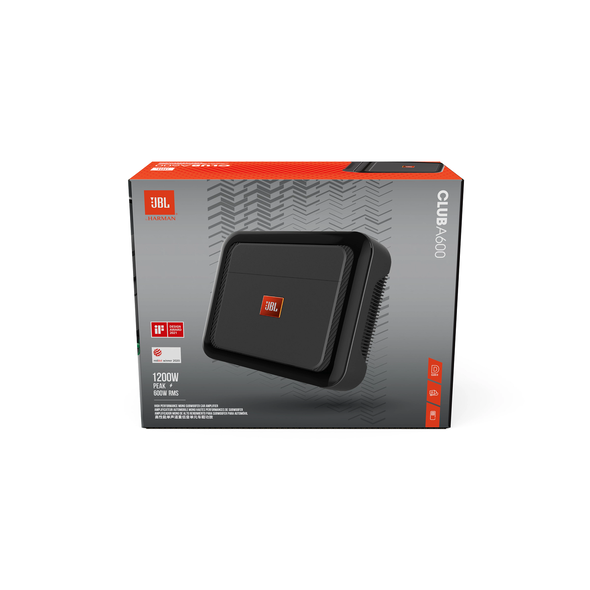

JBL CLub One Box visual
