Tính năng
Compact size

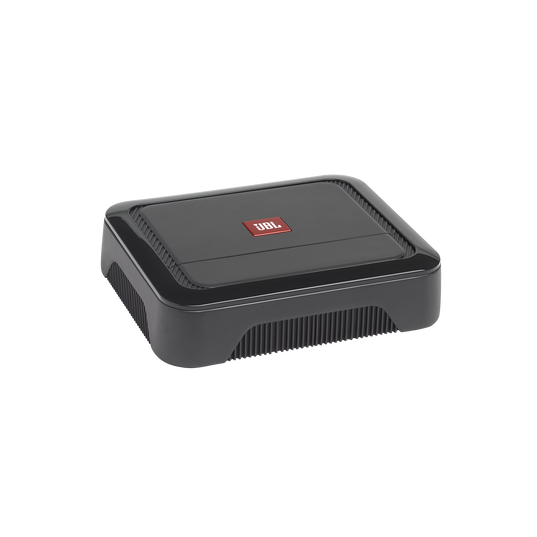

The JBL Club A600 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
High and low level input

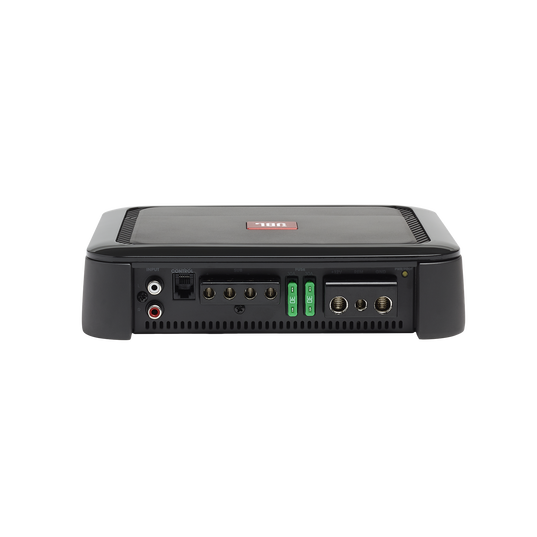

Speaker-level and low-level inputs allow the Club A600 to integrate with both aftermarket and factory car stereo systems.
Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the JBL Club A600 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.
Low noise and distortion
The Club A600 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.
Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
On-board circuitry protects the Club A600 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
Phase Switch
This switch changes the input phase to inverted or non-inverted. This is especially helpful as part of system tuning based on the enclosure type and location in the vehicle.
RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.
Thông số và Tải về
Mục# AMPCBA600
Mô tả sản phẩm
Value engineered car amplifier with JBL power and performance
thông tin chi tiết
Trong hộp gồm có
- 1 x Club A600 mono subwoofer car amplifier
- 4 x 30A ATO fuses (2 installed, 2 spare)
- 2 x Bare wire-to-RCA adapters
- 1 x Remote bass control module
- 1 x 16.5' Remote control cable (RJ-25 plugs on both ends)
- 2 x Self-tapping screws for remote (M3 x 15mm)
- 4 x Mounting screws (M4 x 53mm)
- 2 x JBL stickers
- 1 x Owner's manual
bản hướng dẫn & Tải về
Hướng dẫn sử dụng mới nhất, Hướng dẫn nhanh cùng các tài liệu khác.
