Stage XD-5

2-way 5.25" Waterproof Loudspeaker

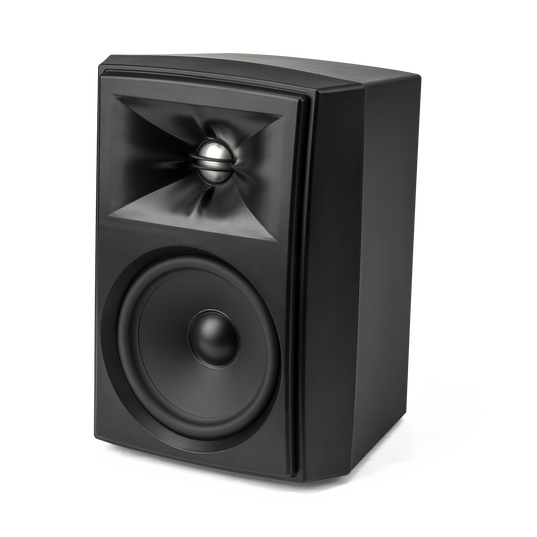

Featuring a 5.25" (130mm) Polypropylene Graphite Filled Cone Woofer and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage XD-5 all-weather speaker is perfect for an outdoor location when protection from the weather is a requirement. Stylish design and mounting flexibility make it equally at home indoors in a variety of applications. Elements including acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
Promotions
Variations

Tính năng

IP67 Waterproof rating provides protection from the harshest of outdoor conditions

IP67 Waterproof rating provides protection from the harshest of outdoor conditions

High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

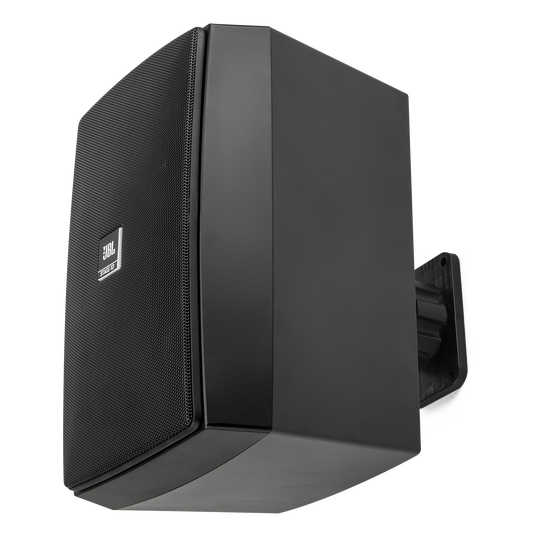

Included wall-mount bracket allows for easy installation and angle adjustment

Included wall-mount bracket allows for easy installation and angle adjustment

Polypropylene Graphite Filled Cone Woofer

Polypropylene Graphite Filled Cone Woofer

Zero bezel magnetically attached grilles

Zero bezel magnetically attached grilles

Rotatable logo for horizontal and vertical applications

Rotatable logo for horizontal and vertical applications

Thông số và Tải về

Mục# JBLXD5BLK

thông tin chi tiết

Product Type 2-way 5.25" (130mm) Indoor/Outdoor All Weather Loudspeaker
Weatherproof Rating IP67
High Frequency Transducer 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer 5.25" (130mm) Polypropylene Cone Woofer
Nominal Impedance 6 ohms
Sensitivity (2.83V@1m) 86dB
Recommended Amplifier Power 20-100W RMS
Frequency Response (-6dB On-Axis) 75Hz-25kHz
Crossover Frequency 2500K
Operating Temperature -31° F (-35° C) to 167° F (75° C)
Product Dimensions (HxWxD) 9.9in (250.0mm) x 7.0in (179mm) X 6.4in (162mm)
Product Weight 2.3lbs (5kg)
Wall Mount Extension 2.8in (71mm)
Beauty Carton Dimensions (HxWxD) 12.6in (320mm) x 16.4in (416mm) X 10.1in (256mm)
Beauty Carton Weight 12.2lbs (5.5kg)
Beauty Carton Quantity 1pr
Master Carton Dimensions (HxWxD) 13.4in (340mm) x 31.1in (788mm) X 17.0in (430mm)
Master Carton Weight 37.5lbs (17kg)
Master Carton Quantity 3pr
