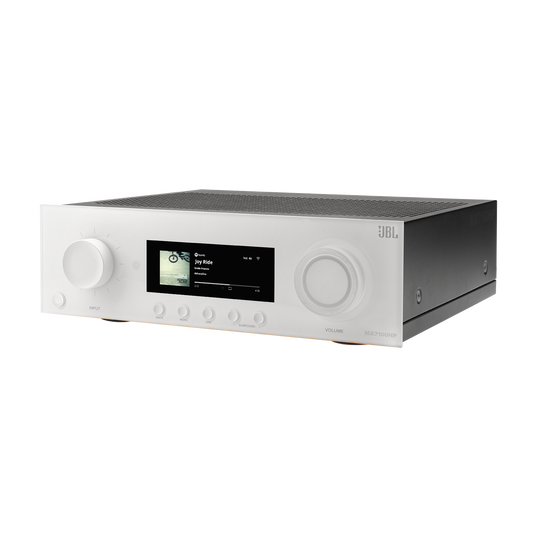

MA7100HP - White - 7.2-channel 8K High Performance AV Receiver - Hero

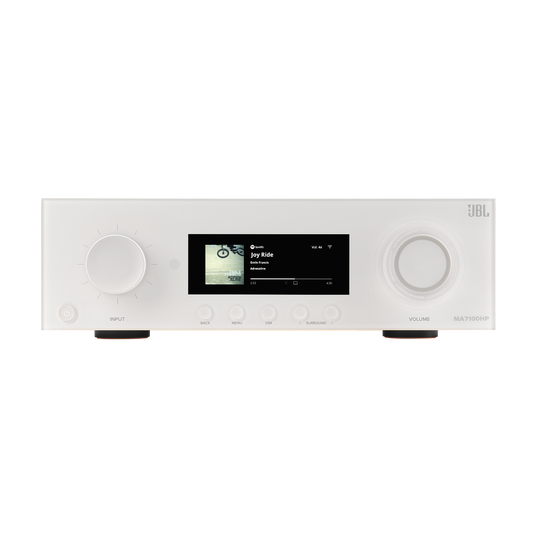

MA7100HP - White - 7.2-channel 8K High Performance AV Receiver - Detailshot 1

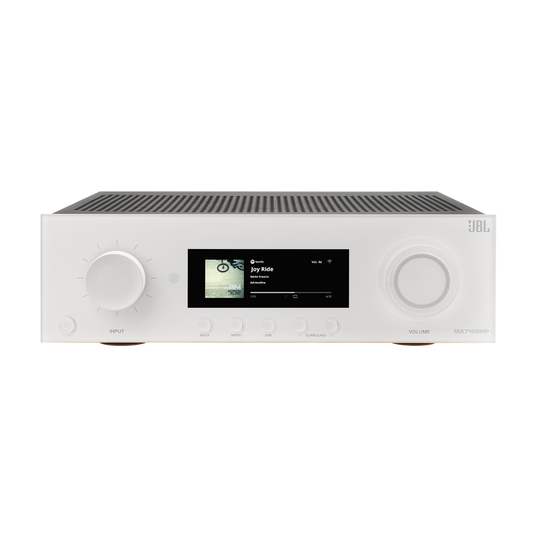

MA7100HP - White - 7.2-channel 8K High Performance AV Receiver - Detailshot 2

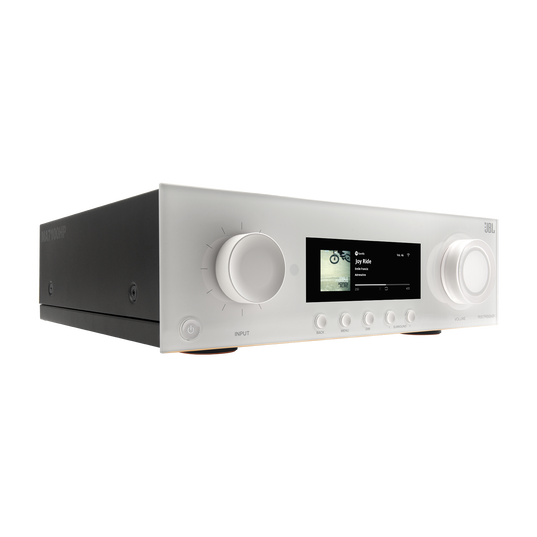

MA7100HP - White - 7.2-channel 8K High Performance AV Receiver - Detailshot 3

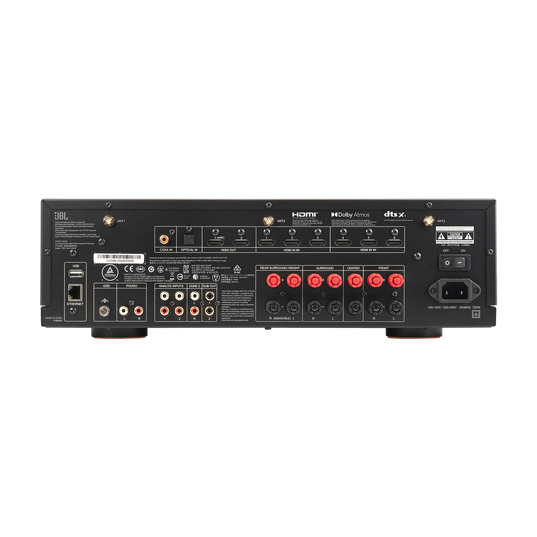

MA7100HP - White - 7.2-channel 8K High Performance AV Receiver - Detailshot 4

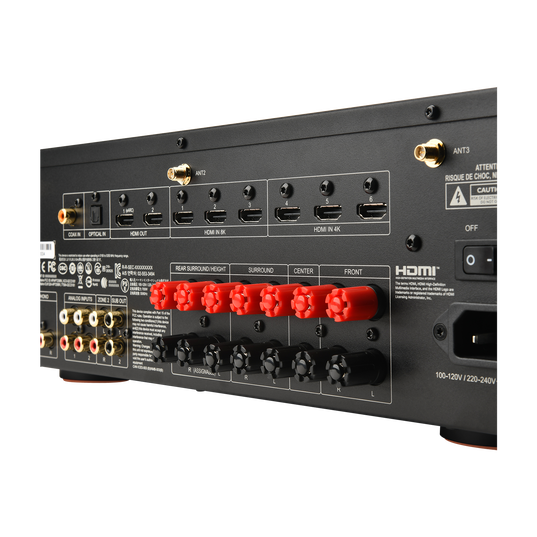

MA7100HP - White - 7.2-channel 8K High Performance AV Receiver - Detailshot 5

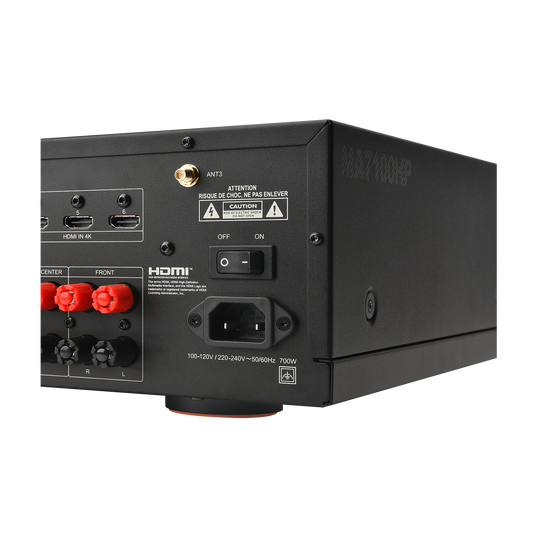

MA7100HP - White - 7.2-channel 8K High Performance AV Receiver - Detailshot 6

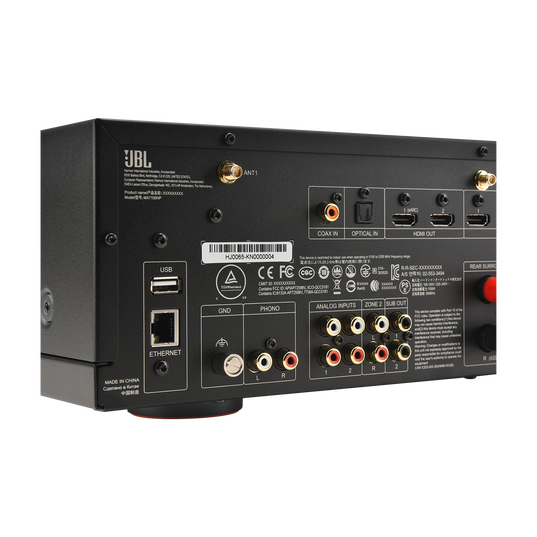

MA7100HP - White - 7.2-channel 8K High Performance AV Receiver - Detailshot 7

MA7100HP - White - 7.2-channel 8K High Performance AV Receiver - Detailshot 8

Tính năng

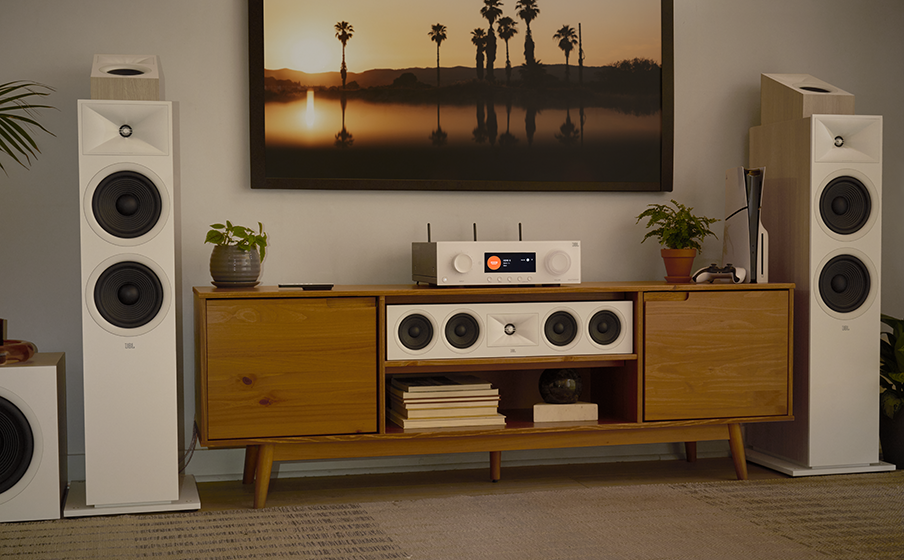

Stunning audio and video performance

High-performance 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

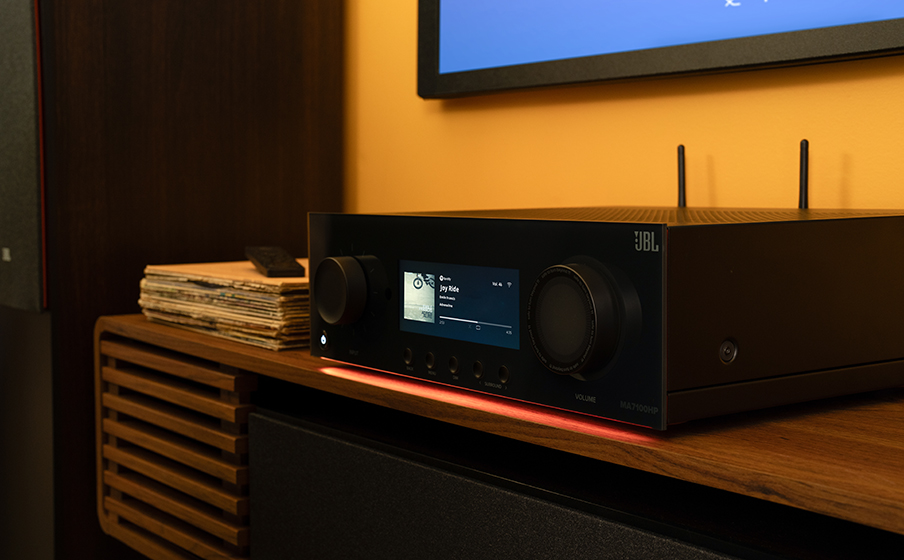

Intuitive setup with a minimalist modern design

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC

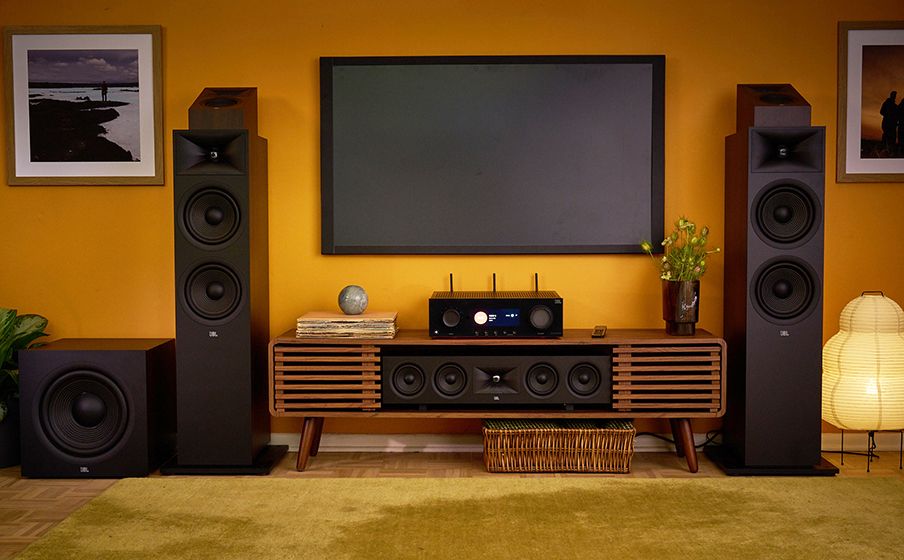

High-performance immersive surround sound

Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations

Bluetooth and network streaming

Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)

Powerful amplification

Seven channels of low noise Class D amplification for real world power to all channels.

EZ Set EQ

EZ Set EQ provides easy-to-use room equalization for optimized sound quality.

Ready for Dirac Live® room correction

Comes Dirac Live Ready, fully prepared to run Dirac Live – the worlds most advanced room correction software. Purchase a license to activate Dirac Live at www.dirac.com/online-store/

Thông số và Tải về

Mục# JBLMA7100HPWHTAS

Mô tả sản phẩm

Bring both music and movies to life with true high fidelity.

The JBL MA7100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. Designed with a passion for music and movies, the MA7100HP brings both to life with true high fidelity. The MA7100HP features seven channels of low-noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Taking performance to the next level, the MA7100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allows integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can also be made available in a secondary location. In addition to physical controls, the MA7100HP allows for IP control for third party control system integration.

thông tin chi tiết

HDMI eARC Yes

HDMI Audio Return Channel Yes

8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) 3

HDMI 2.1 enhanced gaming features Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)

HDR 10+, Dolby Vision Yes , Yes

File format MP3 / MPEG-4 AAC

Pure Analog Yes

EZ Set EQ Yes

Front channel bi-amp Yes

Digital signal processing up to 24-bit/192kHz

Mains voltage 110 – 240V, 50–60Hz

Max. power consumption 700W

Standby power consumption <0.5W

thông số kỹ thuật

Channels 7.2

FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) 125W

Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 125 W RMS

Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 175 W RMS

Kích thước

Dimensions incl. feet and speaker terminals (H x W x D) 5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm)

Weight 16.4lb (7.4kg)

Điều khiển và Thông số kết nối

HDMI Input/Output 6/ 2

Wi-Fi Yes (2.4/5GHz)

Bluetooth receiver Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)

Bluetooth transmit Yes

Digital Audio Input 1 Coax, 1 Optical, 1 USB

Stereo analog input 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground

Pre-Out (single ended RCA) Stereo Zone 2, Subwoofer 1, Subwoofer 2

Ethernet RJ45 Gigabit, WiFi Onboard

Trong hộp gồm có

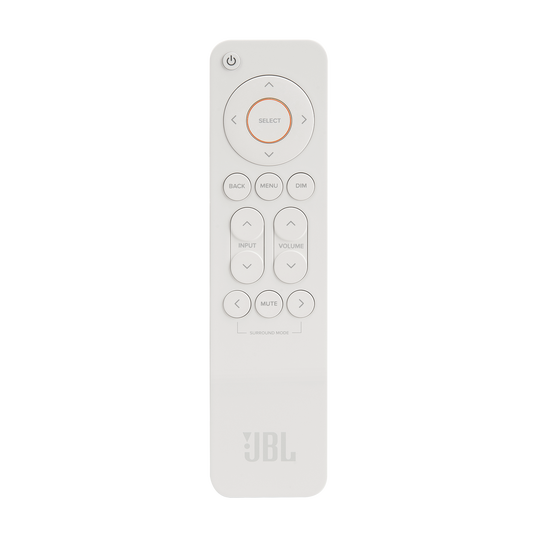

1x IR Remote
2x AAA batteries
1x Bluetooth antenna
2x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet

bản hướng dẫn & Tải về

Hướng dẫn sử dụng mới nhất, Hướng dẫn nhanh cùng các tài liệu khác.

Hỗ trợ
