Conceal C82W

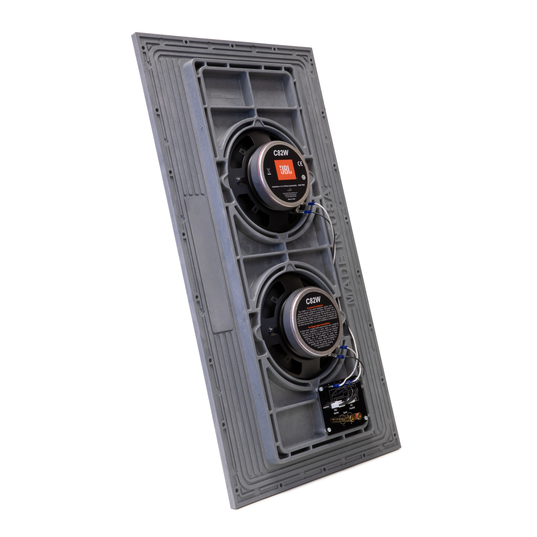

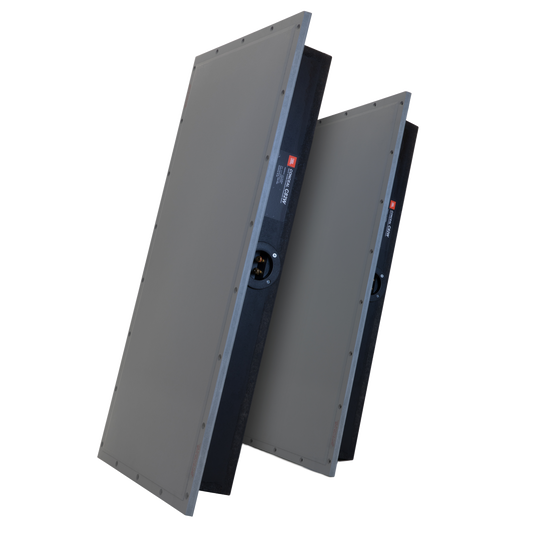

The JBL Conceal C82W Invisible Subwoofer System is a high-performance 2-panel design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. Each panel contains a pair of acoustically coupled 8-inch drivers. The finished loudspeaker panels install easily and disappear completely into the surrounding walls and ceiling, allowing optimal placement virtually anywhere in a house. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.
Promotions
Variations
Tính năng
Dual-panel design each with dual 8-inch (200mm) LF drivers transducers.
Proprietary FidelityGlass™ acoustic panel and compression molded baffle.

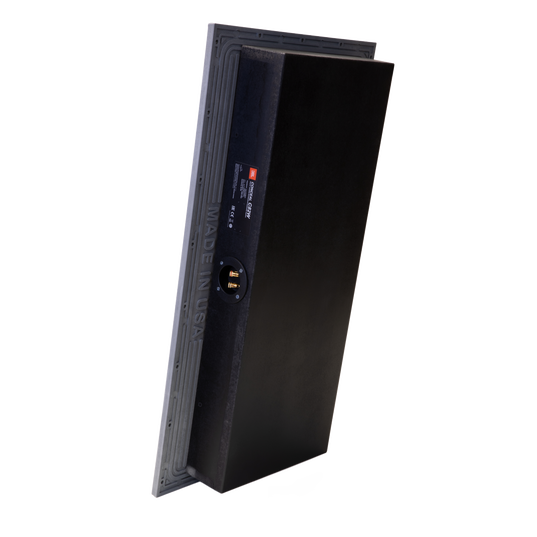

Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.
Loudspeaker system installs like a standard drywall patch.
Paintable surface can be custom finished for complete invisibility.
Sold in pairs.
C30PCB Pre-Construction Boards (sold separately).
Thông số và Tải về
Mục# JBLC82W
Mô tả sản phẩm
Conceal C82W
The JBL Conceal C82W Invisible Subwoofer System is a high-performance 2-panel design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. Each panel contains a pair of acoustically coupled 8-inch drivers. The finished loudspeaker panels install easily and disappear completely into the surrounding walls and ceiling, allowing optimal placement virtually anywhere in a house. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.
thông tin chi tiết
Type
In-Wall/In-Ceiling subwoofer system
Low Frequency Drivers
8-inch (203mm) woofers with 1.5-inch (38mm) voice coil (2 per panel)
Recommended Amplifier Power
60 - 100 WRMS (per panel)
Impedance
Selectable 4 Ohm or 16 Ohm (each panel)
Loudspeaker Sensitivity
86 dB/1W/1m measured in-room
Frequency Response
30 Hz - 300 Hz (-6 dB) measured in-room
Crossover Frequency
N/A (requires amplifier with HPF and LPF)
Enclosure Type
Sealed, with wooden back-box
Protection
N/A (requires amplifier with limiter)
Input Type
Dual gold-plated spring-loaded binding posts
Warranty
5 Years
Kích thước
Panel Dimensions
30" H x 15-7/8" W x 3-7/8" D (762mm H x 403mm W x 98mm D)
Cut-out Dimensions
30-1/8” H x 16” W (765mm H x 406mm W)
Mounting Depth
3-3/8-inches (86mm)
Product Weight
59.8 lbs (27.1 kg)
Shipping Weight
67.4 lbs (30.6kg)
