Stage 280C

2-way 8in (203mm) In-Ceiling Loudspeaker

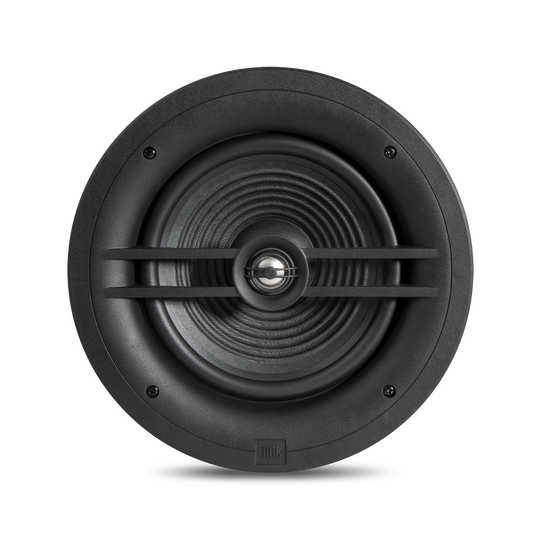

The Stage 260C has an 8" (200mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
Promotions
Variations

Tính năng

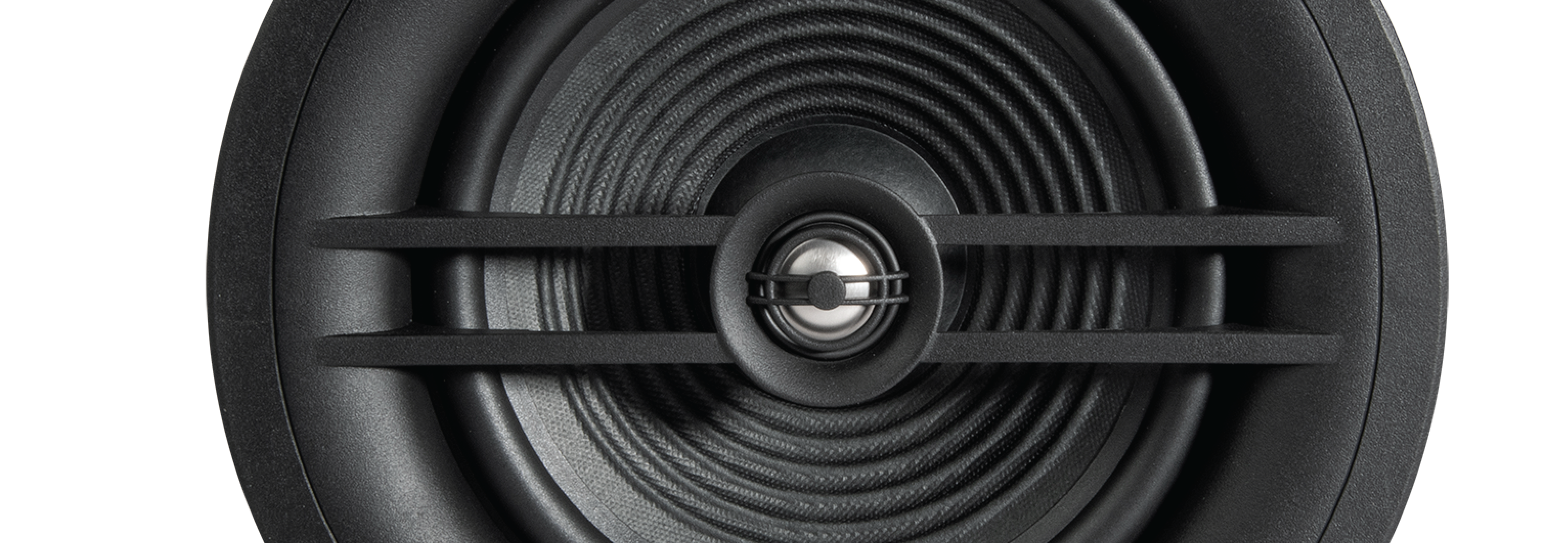

1" (25mm) Aluminum dome with acoustic lens waveguide

1" (25mm) Aluminum dome with acoustic lens waveguide

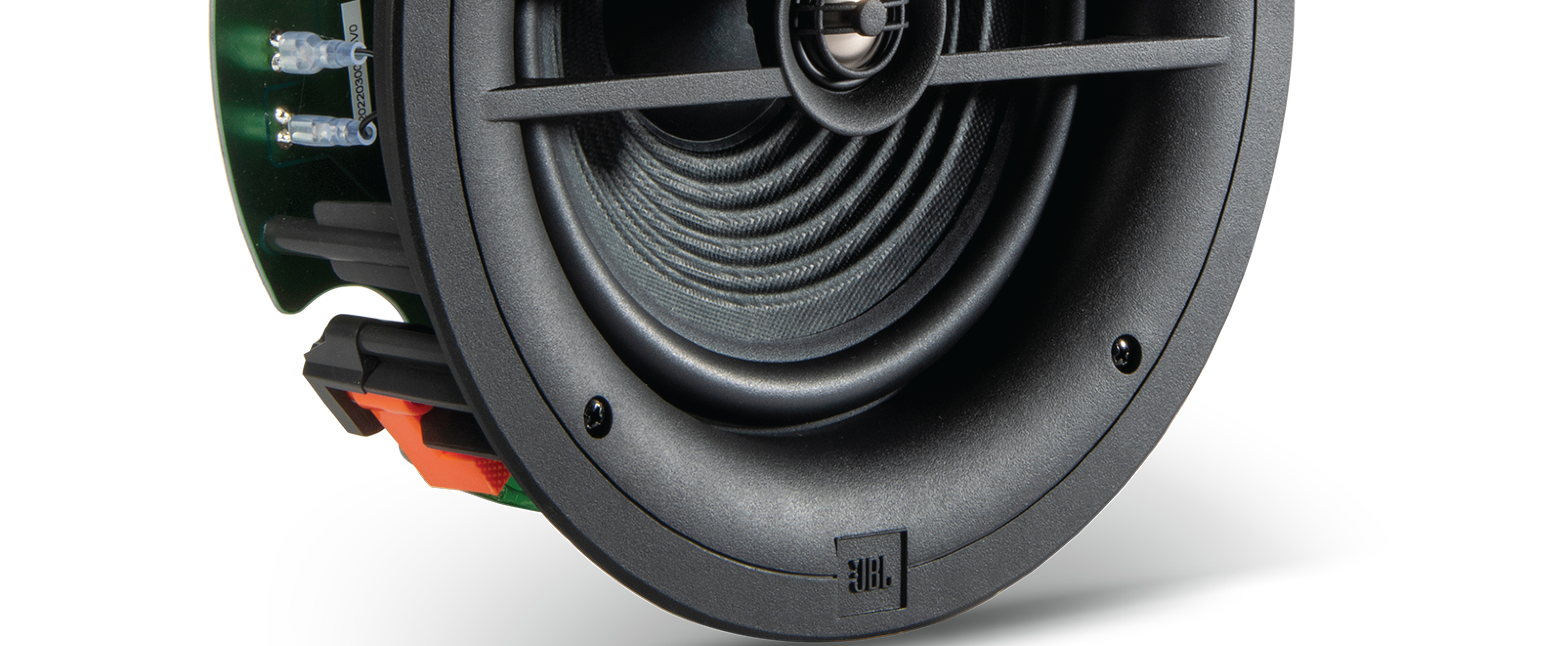

8" (200mm) Polycellulose cone woofer

8" (200mm) Polycellulose cone woofer

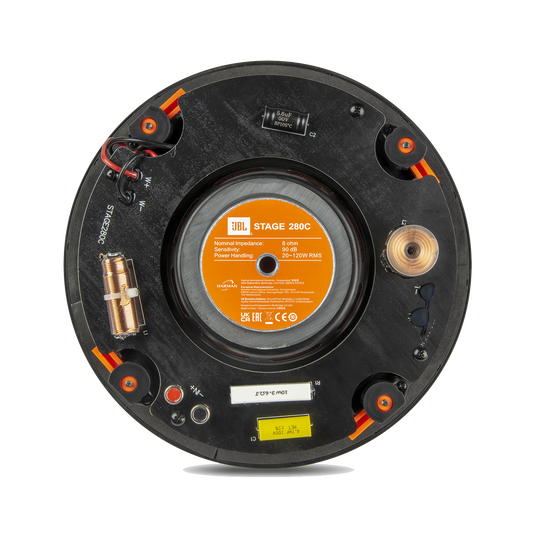

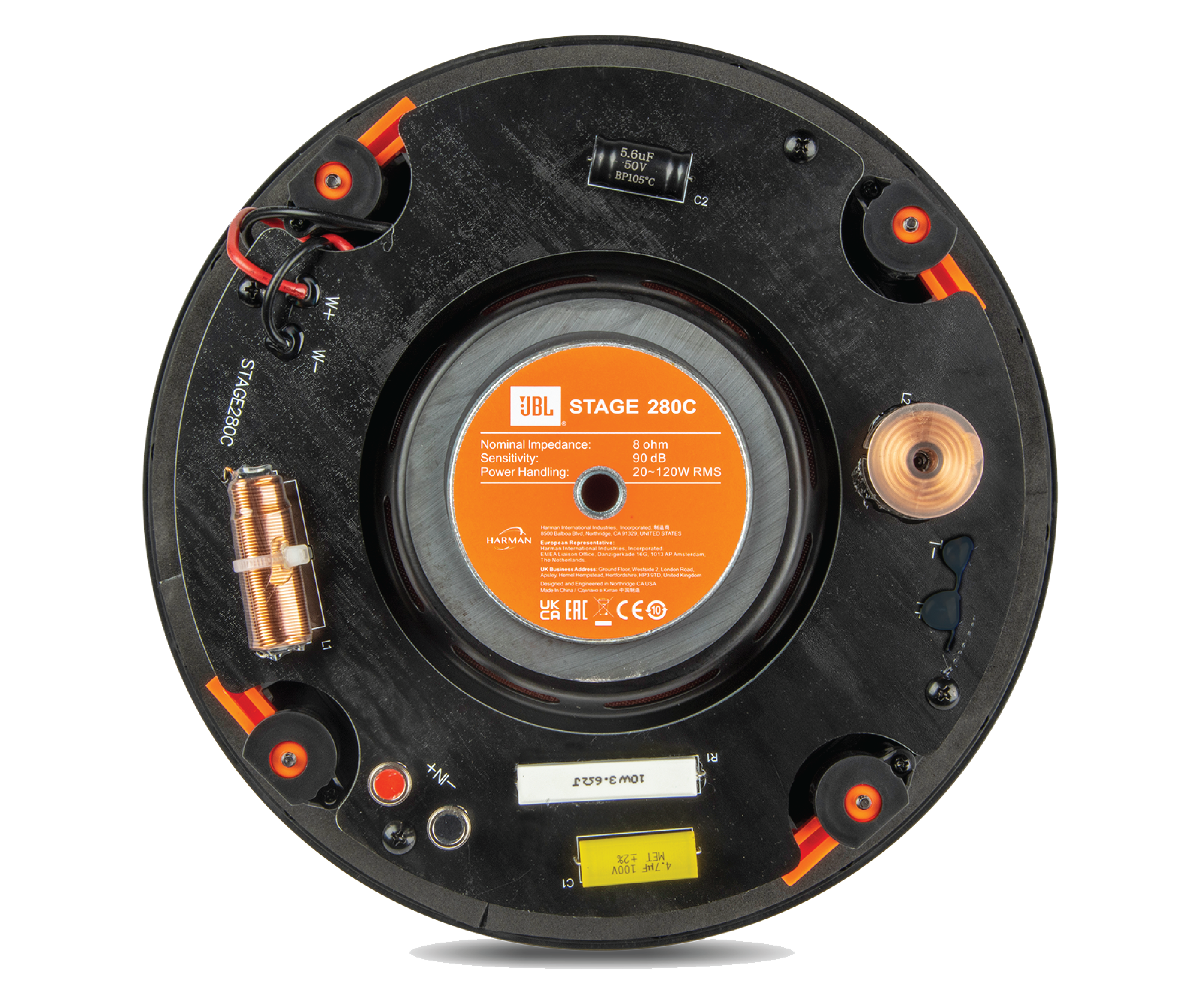

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

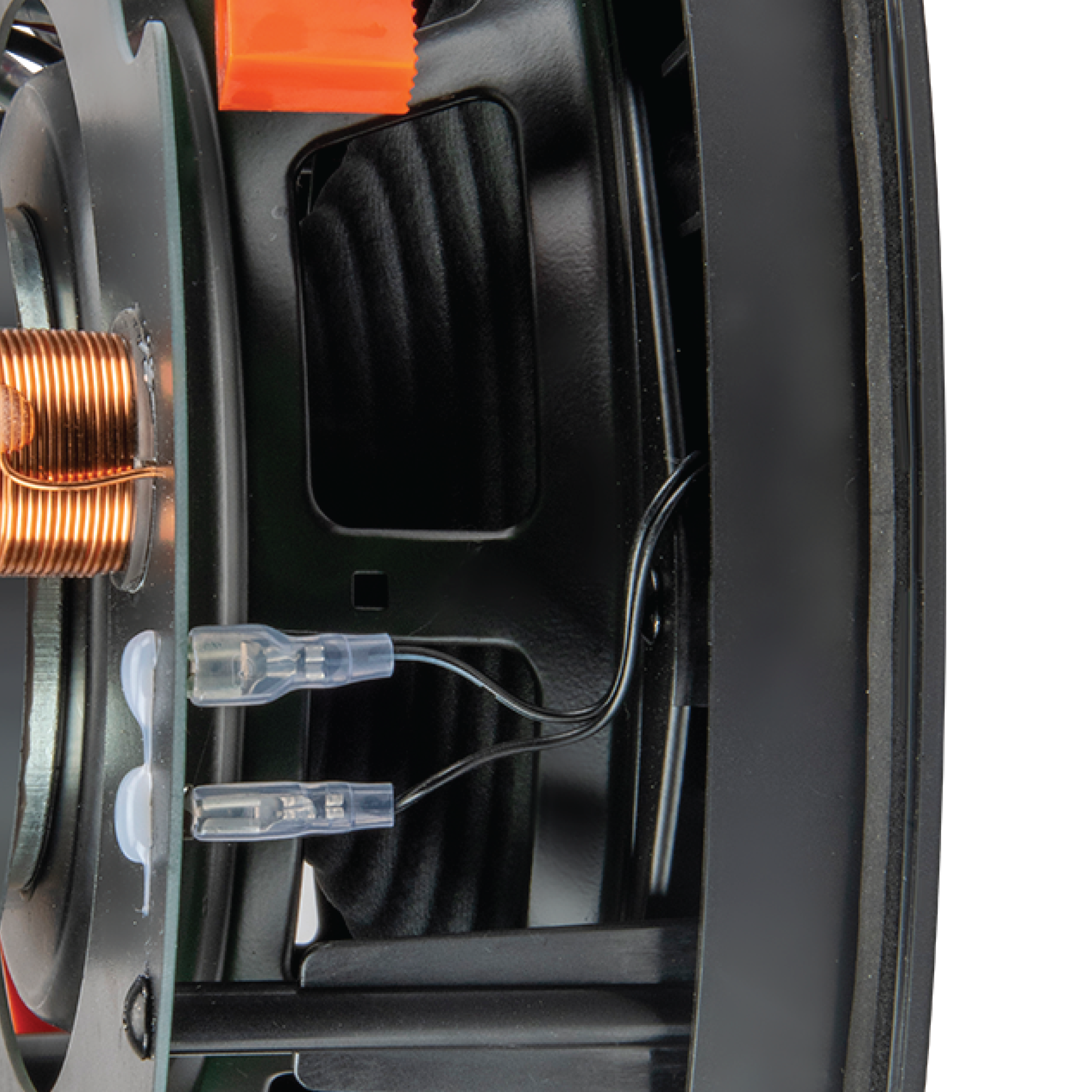

Rigid Baffle design with acoustic smoothing for improved transducer integration

Rigid Baffle design with acoustic smoothing for improved transducer integration

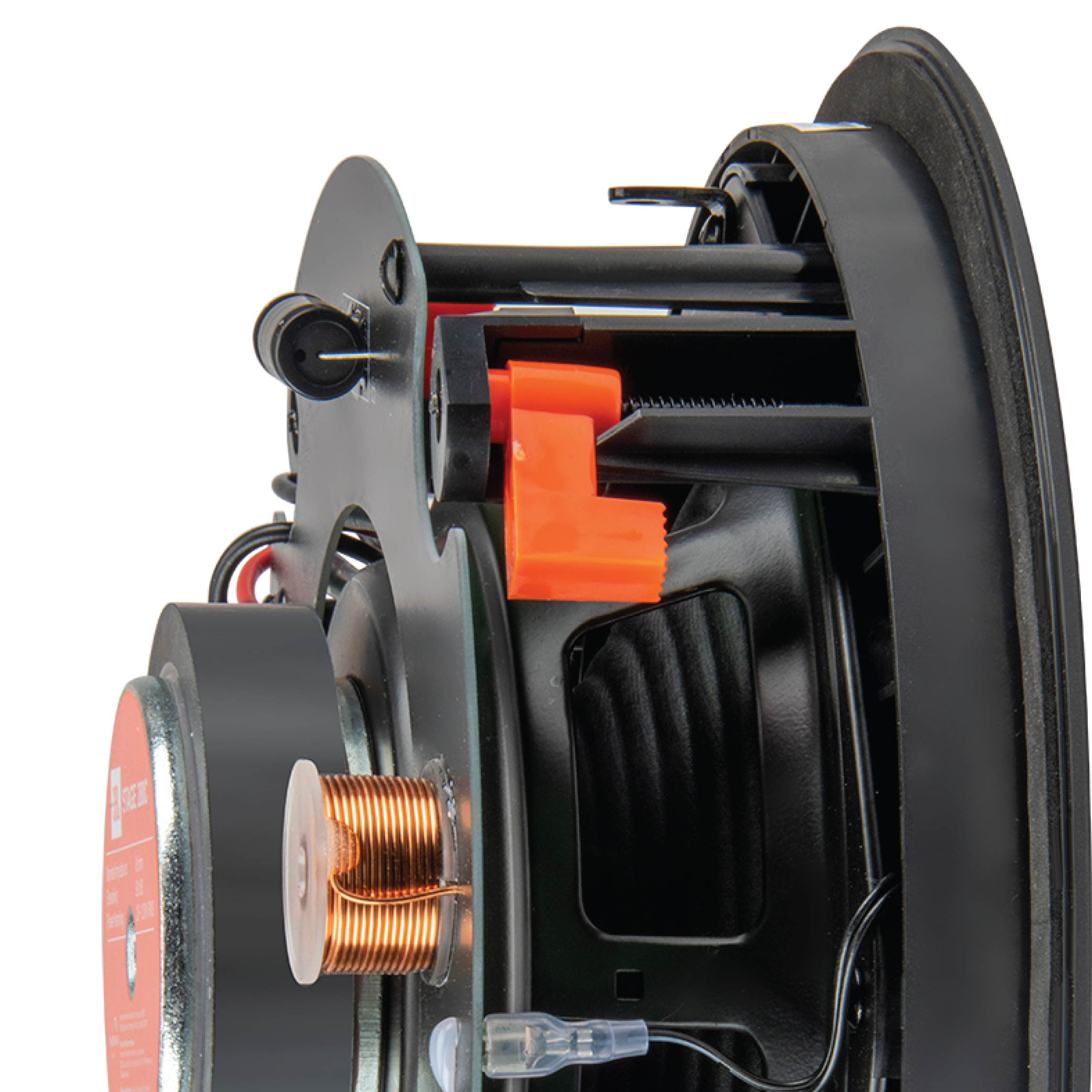

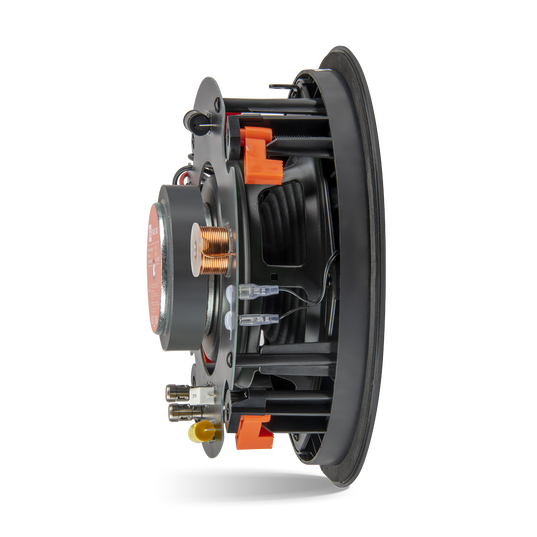

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

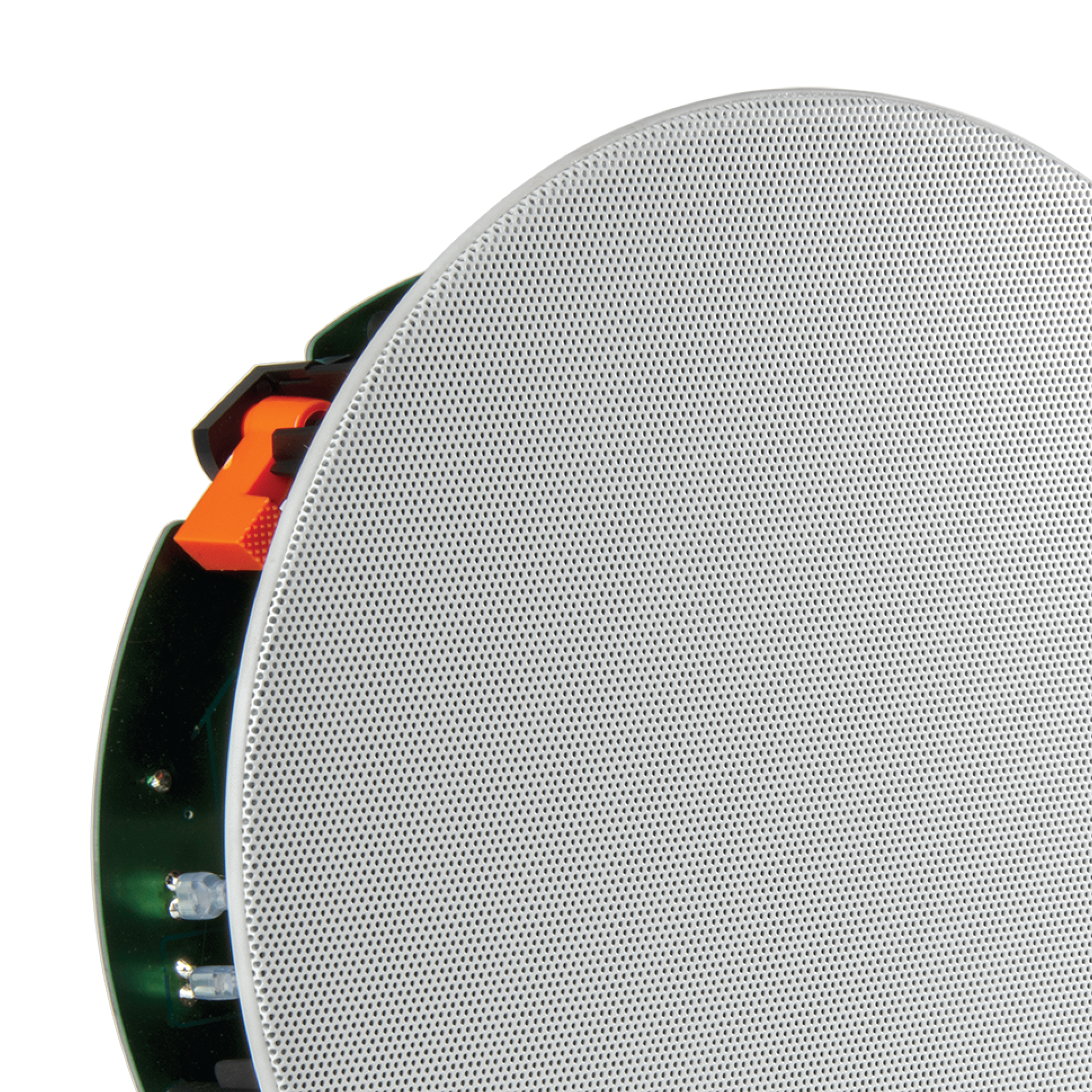

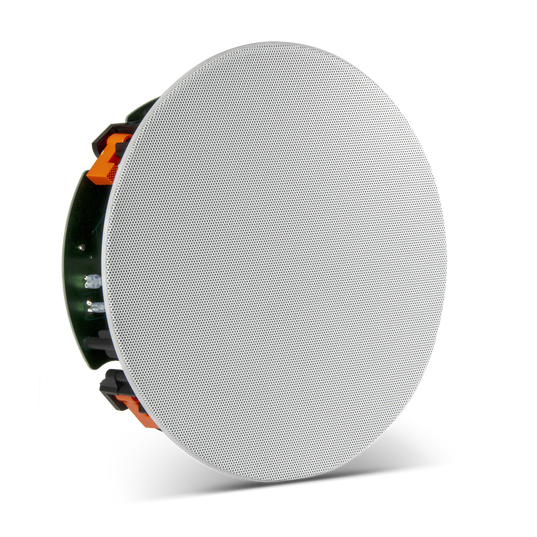

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Thông số và Tải về

Mục# JBL280C

Mô tả sản phẩm

Stage 280C

The Stage 260C has an 8" (200mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.

thông tin chi tiết

High Frequency Transducer 1" (25mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer 8" (200mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range) 20-120W RMS
Frequency Response 42Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m) 90dB
Nominal Impedance 8ohm
Crossover Frequency 3400Hz
Inputs Nickel-plated spring-loaded connectors
Grille Dimensions Dia 10.8in (275mm)
Cutout Dimensions Dia 9.6in (244mm)
Mounting Depth 4.3in (108mm)
Product Weight (Kg) 2.2Kg
Shipping Carton Dimensions L 12.7in (322mm) x W 12.7in (322mm) x H 5.6in (142mm)
Shipping Carton Weight 6.97lbs (3.16Kg)
