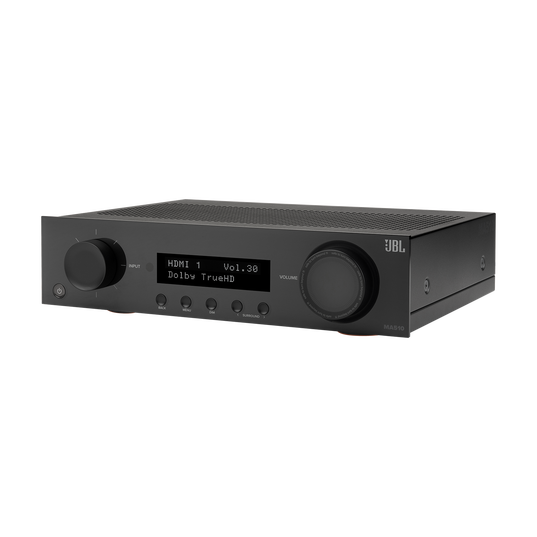

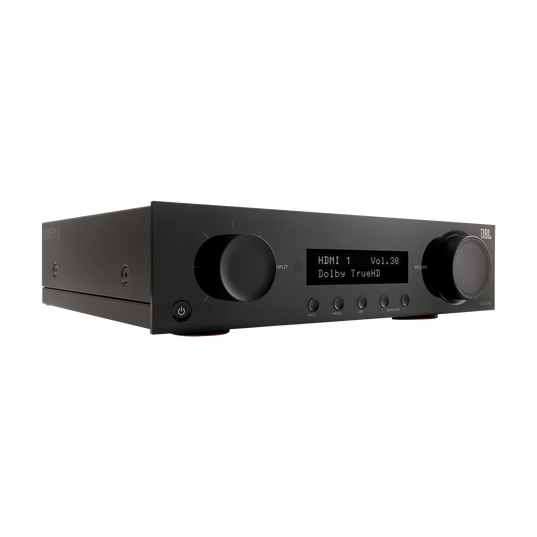

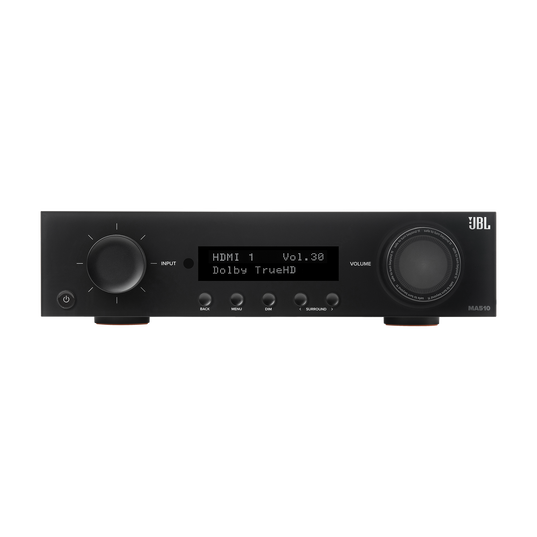

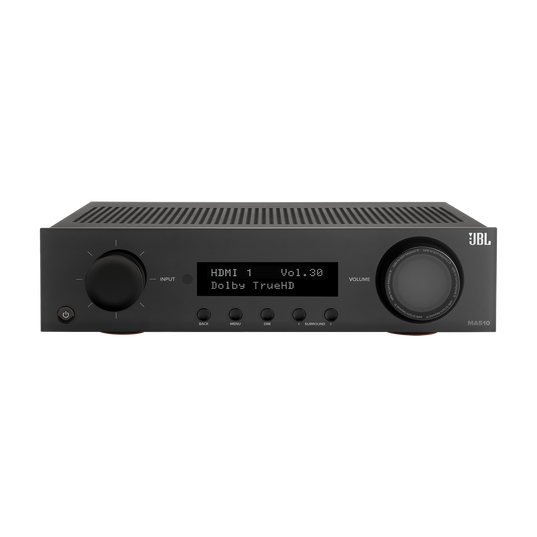

MA510
brand.jbl-synthesis JBLMA510BLKAS

MA510

5.2-channel 8K AV Receiver

The JBL MA510 AV Receiver delivers spectacular realism for a supreme home cinema experience. It is designed with a passion for music and movies, bringing both to life with true high fidelity.
Promotions
Variations

Tính năng

Spectacular audio and video performance

Spectacular audio and video performance

5.2-channel AV receiver that delivers spectacular audio performance with 8K video for the ultimate home cinema experience.

Intuitive setup with a minimalist modern design

Intuitive setup with a minimalist modern design

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus eARC.

High-performance immersive surround sound

High-performance immersive surround sound

Native 5-channel decoding of Dolby and DTS formats.

Bring both music and movies to life with true high fidelity

Bring both music and movies to life with true high fidelity

Designed with a passion for music and movies, bringing both to life with true high fidelity.

Bluetooth and network streaming

Bluetooth and network streaming

Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast).

On-screen setup and operation

On-screen setup and operation

On-screen display for easy system setup and operation (via HDMI).

Powerful amplification

Powerful amplification

Five channels of low noise Class D amplification for real world power to all channels.

EZ Set EQ

EZ Set EQ

EZ Set EQ provides easy-to-use room equalization for optimized sound quality.

Thông số và Tải về

Mục# JBLMA510BLKAS

Mô tả sản phẩm

Bring both music and movies to life with true high fidelity.

The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.

thông tin chi tiết

HDMI eARC Yes
HDMI Audio Return Channel Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) 4
HDMI 2.1 enhanced gaming features Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision Yes , Yes
File format MP3 / MPEG-4 AAC
Pure Direct Yes
EZ Set EQ Yes
Digital signal processing up to 24-bit/192kHz

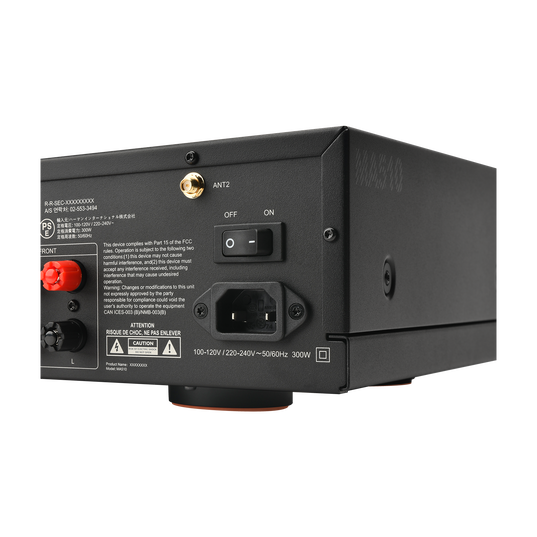

Mains voltage 110 – 240V, 50–60Hz
Max. power consumption 300W
Standby power consumption <0.5W

thông số kỹ thuật

Channels 5.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) 75W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 75 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 100 W RMS

Kích thước

Dimensions incl. feet and speaker terminals (H x W x D) 4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
Weight 12lb (5.4kg)

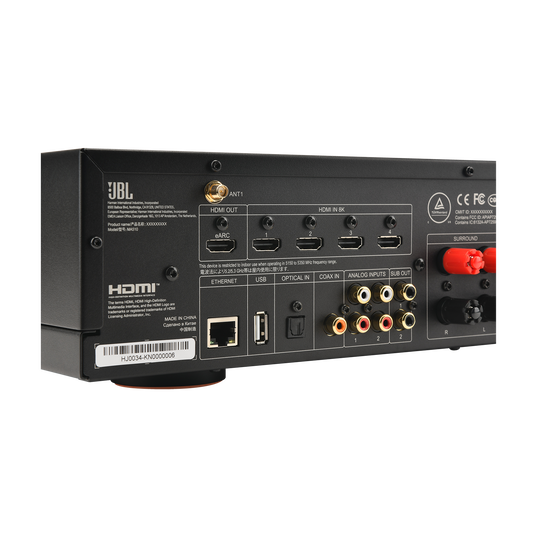

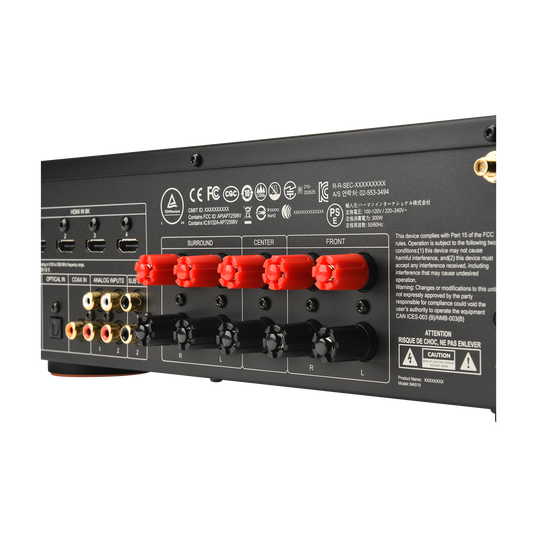

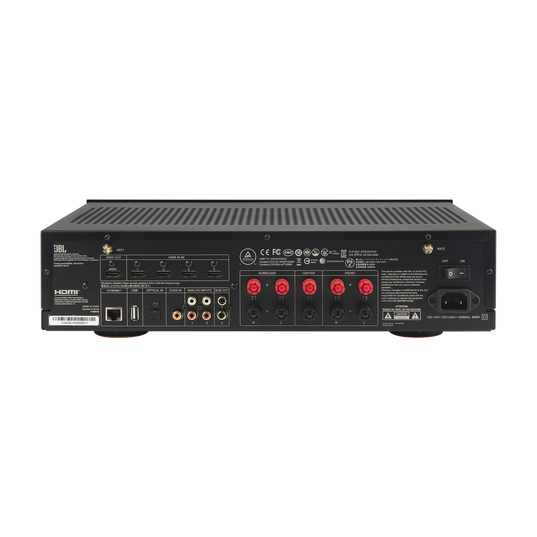

Điều khiển và Thông số kết nối

HDMI Input/Output 4 / 1
Wi-Fi Yes (2.4/5GHz)
Bluetooth receiver Yes (v4.1, Low Energy)
Digital Audio Input 1 Coax, 1 Optical, 1 USB
Stereo analog input 2 single-ended RCA
Pre-Out (single ended RCA) Subwoofer 1, Subwoofer 2
Ethernet RJ45 Gigabit, WiFi Onboard

Trong hộp gồm có

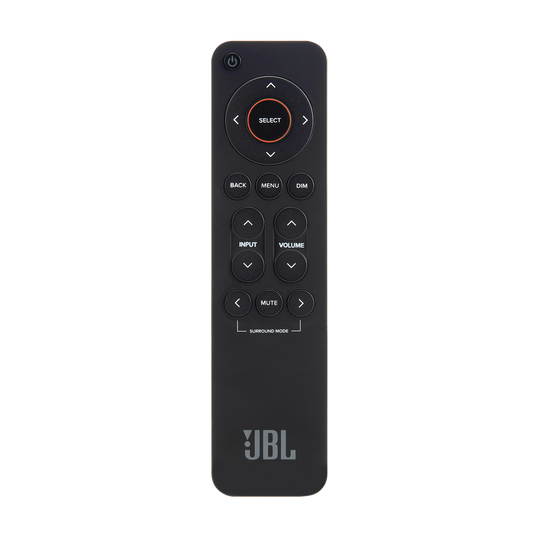

  • 1x IR Remote
  • 2x AAA batteries
  • 1x Bluetooth antenna
  • 1x Wi-Fi antenna
  • 1x Power Cord
  • 1x Quick-Start Guide
  • 1x Safety Sheet
