HDI-1600
brand.jbl-synthesis JBLHDI1600GRO

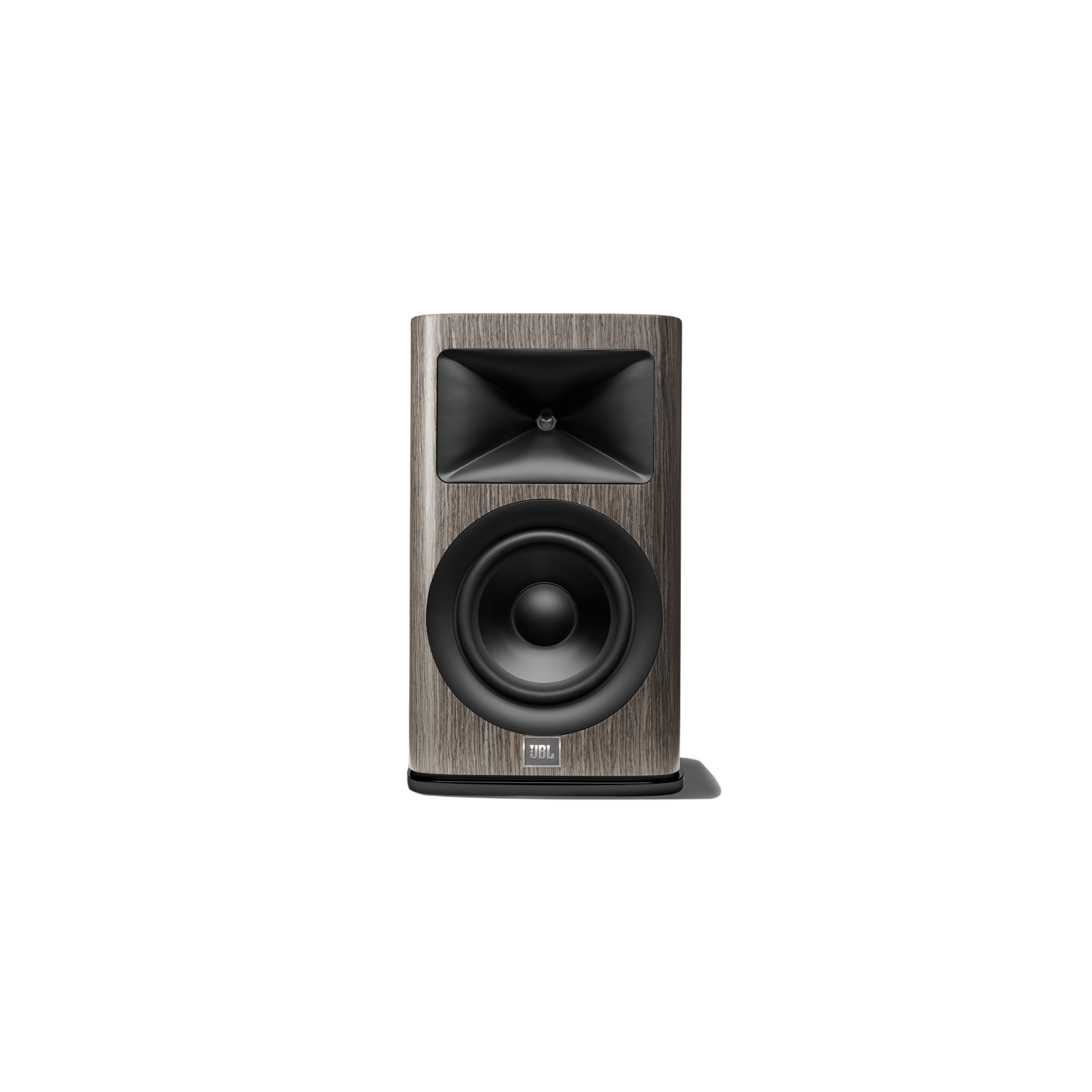

HDI-1600

6.5-inch (165mm) 2-way Bookshelf Loudspeaker

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1600 delivers exceptional performance from a compact enclosure. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) Advanced Aluminum Matrix cone woofer for powerful dynamics and incredibly accurate sound reproduction. The accessory HDI-FS floor stands lift the speakers to their perfect height.
Promotions

Tính năng

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

6.5" (165mm) Advanced Aluminum Matrix cast-frame woofers.

6.5" (165mm) Advanced Aluminum Matrix cast-frame woofers.

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

Rear-firing, computer-optimized flared port.

Rear-firing, computer-optimized flared port.

Advanced crossover network

Advanced crossover network

Dual sets of gold-plated binding posts with shorting straps.

Dual sets of gold-plated binding posts with shorting straps.

Black cloth, magnetically attached grille.

Black cloth, magnetically attached grille.

Recommended HDI-FS speaker stands (sold separately).

Recommended HDI-FS speaker stands (sold separately).

Thông số và Tải về

Mục# JBLHDI1600GRO

Mô tả sản phẩm

HDI-1600

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1600 delivers exceptional performance from a compact enclosure. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) Advanced Aluminum Matrix cone woofer for powerful dynamics and incredibly accurate sound reproduction. The accessory HDI-FS floor stands lift the speakers to their perfect height.

thông tin chi tiết

Enclosure Type Bass-reflex design with rear-firing port
High Frequency Transducer 1-inch (25mm) Teonex compression driver
Low Frequency Transducer 6.5-inch (165mm) black Advanced Aluminum Matrix cone, cast frame woofer
Crossover Frequency 1900Hz
Sensitivity (2.83V @ 1M) 85dB
Nominal Impedance 4 Ohm
Recommended Amplifier Power 15W – 200W
Frequency Response 40Hz – 30kHz (-6dB)
Dimensions (H x W x D) 14.57 x 9.06 x 11.375” (370.0 x 230 x 288.9mm)
Net Weight 21.96 lbs (9.96kg)
Matching Stand HDI-FS
