Studio 630
JBL JBLS630W

Studio 630

6.5-inch 2-way Bookshelf Loudspeaker

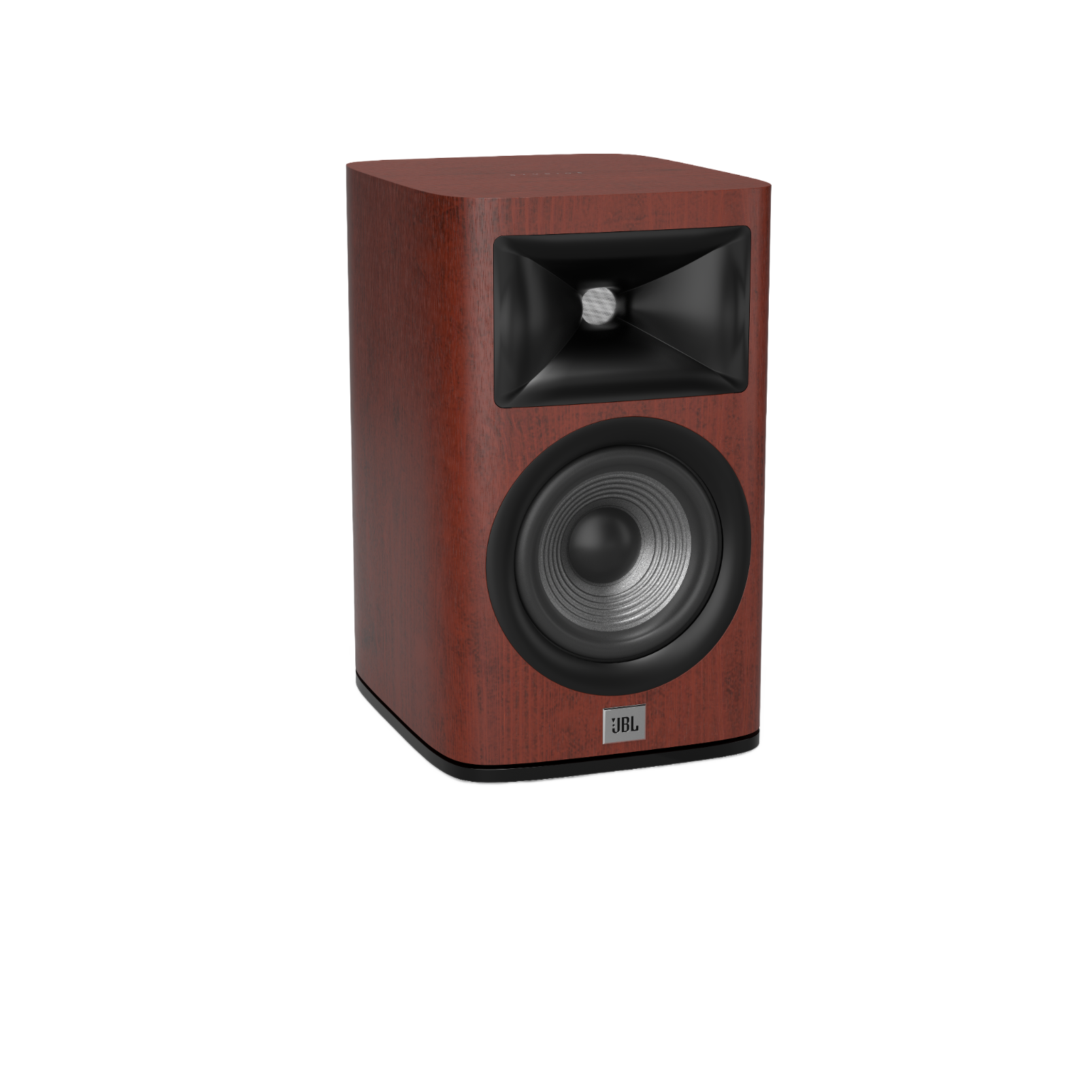

The JBL Studio 630 is a high-performance bookshelf loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with a 6.5-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
Promotions

Tính năng

Top-graded PolyPlass cones

Top-graded PolyPlass cones

High-quality sounding compression drivers

High-quality sounding compression drivers

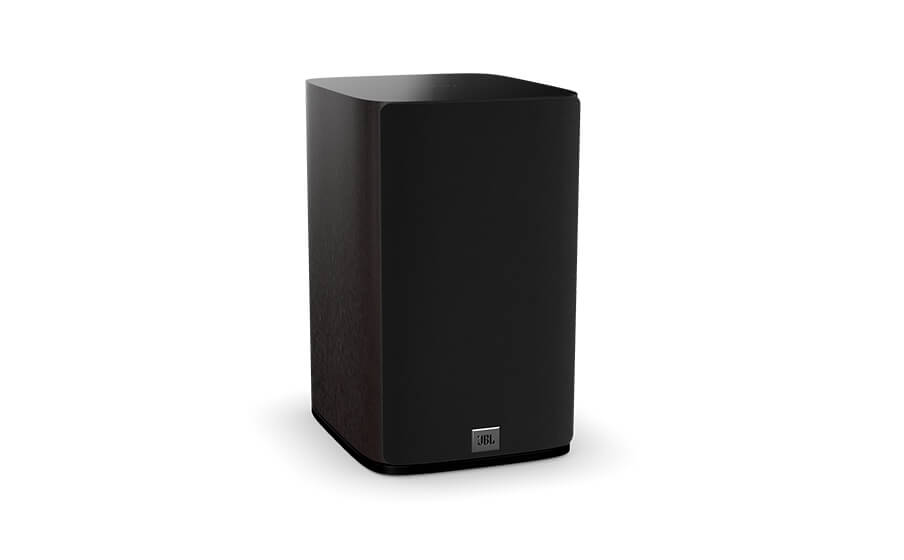

New, appealing form factor

New, appealing form factor

High-definition imaging Waveguide with high-frequency compression driver

High-definition imaging Waveguide with high-frequency compression driver

Thông số và Tải về

Mục# JBLS630W

Mô tả sản phẩm

Studio 630

The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.

thông tin chi tiết

Single 6.5", 2-way compression driver bookshelf loudspeaker Yes
6.5" (165mm) PolyPlas Low-Frequency Woofer Yes
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver Yes
Recommended Amplifier Power Max 150W
Frequency Response 45Hz – 40kHz
Sensitivity 85dB @ 1M, 2.83V
Nominal Impedance 6 Ohms
Crossover Frequencies 1.9 kHz
Enclosure Type Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H) 230 x 280 x 372mm

Trong hộp gồm có

  • 2 x JBL Studio 630 Bookshelf Loudspeaker
  • 8 x Feet Pads
  • 1 x Owner’s Manual
  • 1 x Warranty Card
