Stage 260CSA
JBL JBL260CSA

Stage 260CSA

2-way 6.5in (166mm) Angled In-Ceiling Loudspeaker

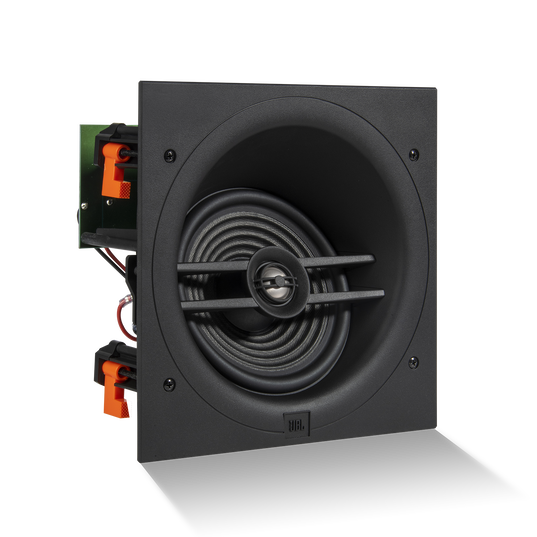

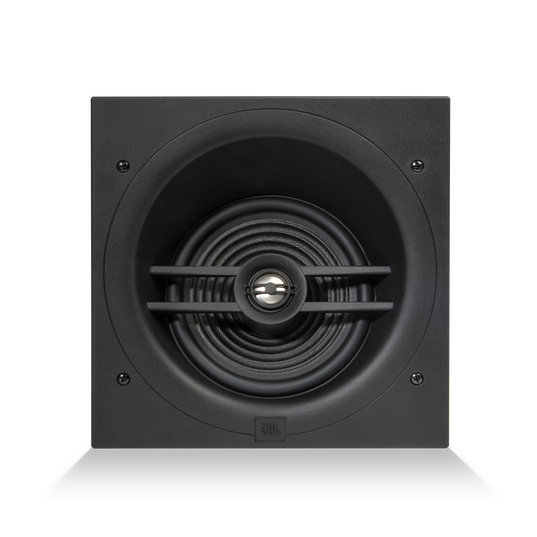

The angled design of the Stage 260CSA allows for accurate aiming of the 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
Promotions
Variations

Tính năng

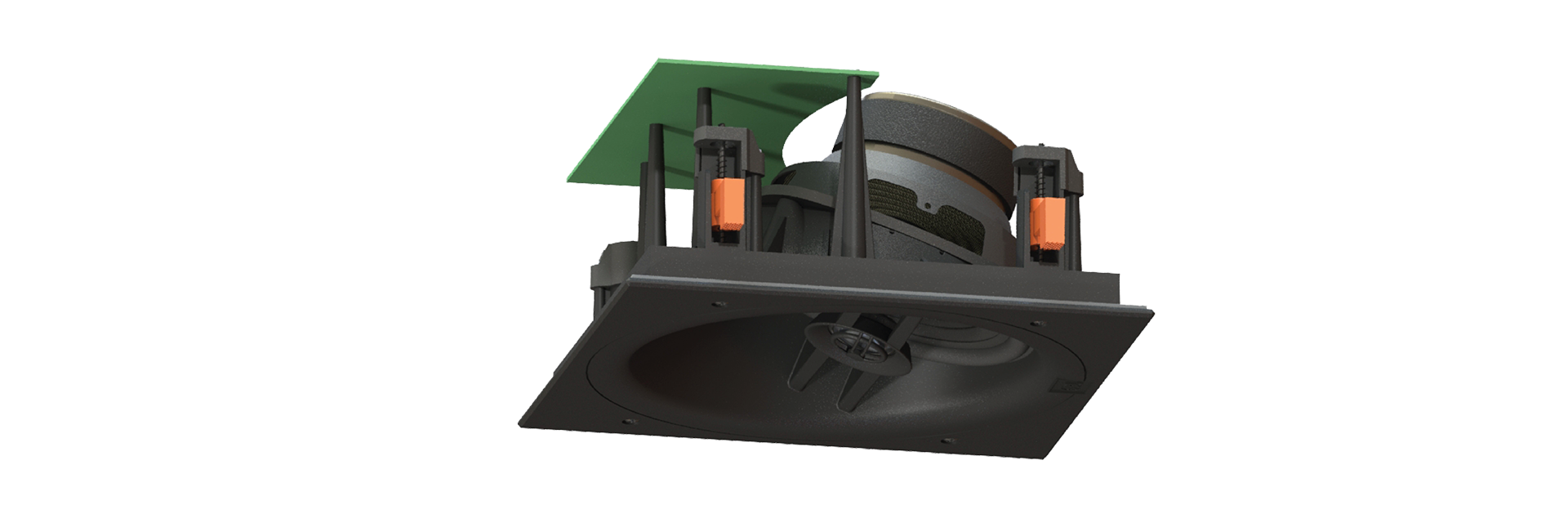

Angled Baffle allows for accurate aiming towards the listening area

Angled Baffle allows for accurate aiming towards the listening area

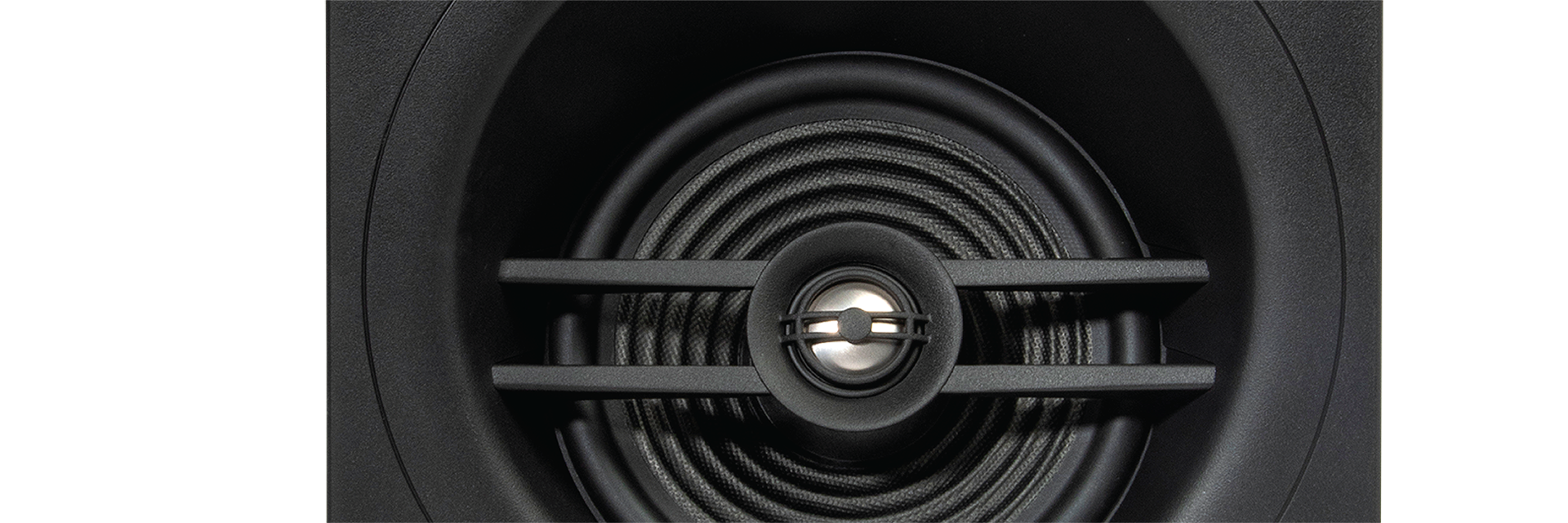

1" (25mm) Aluminum dome with acoustic lens waveguide

1" (25mm) Aluminum dome with acoustic lens waveguide

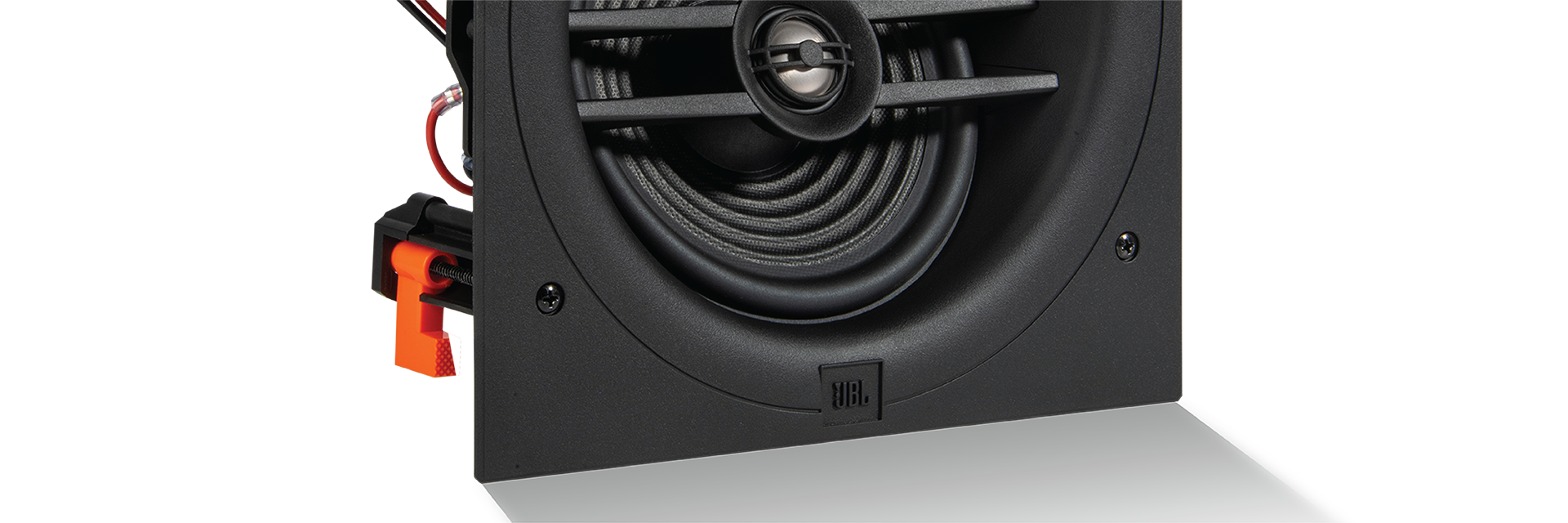

6.5" (165mm) Polycellulose cone woofer

6.5" (165mm) Polycellulose cone woofer

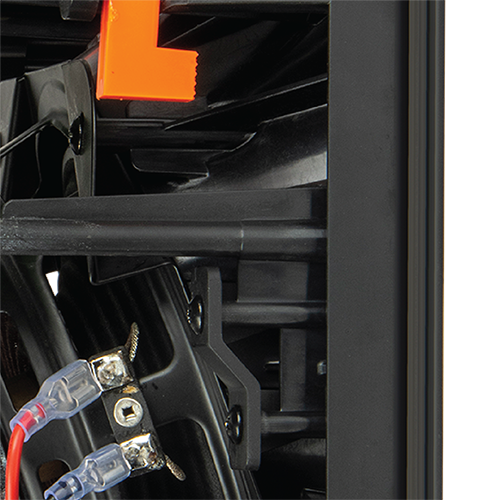

Rigid Baffle design with acoustic smoothing for improved transducer integration

Rigid Baffle design with acoustic smoothing for improved transducer integration

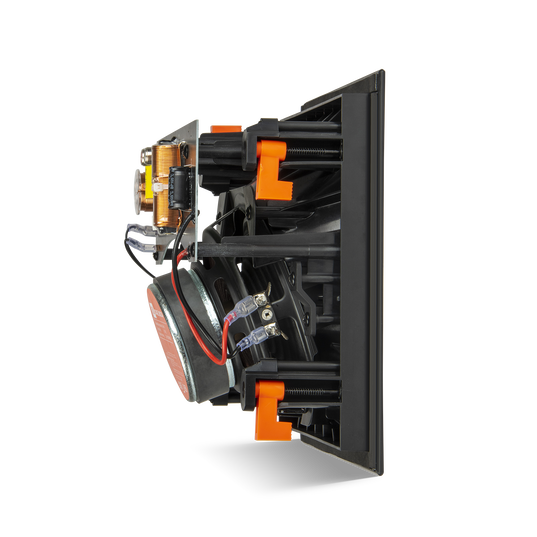

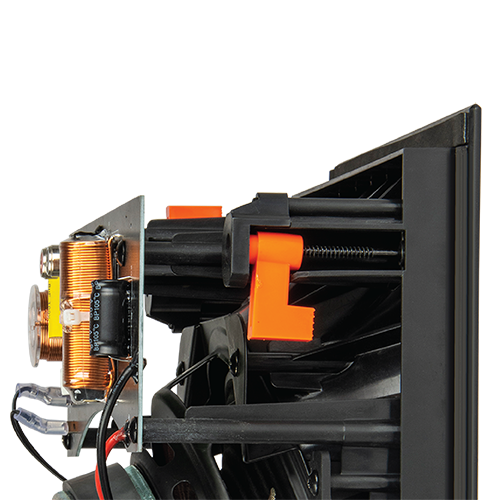

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

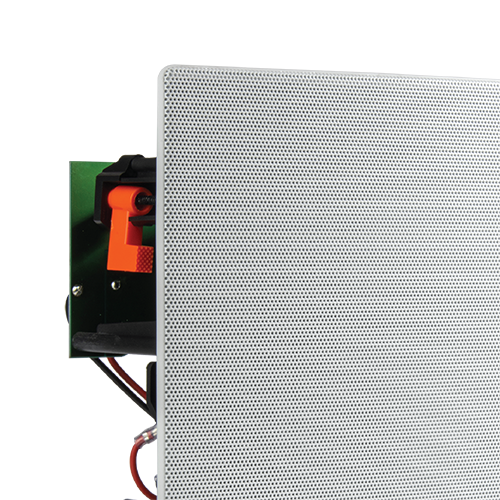

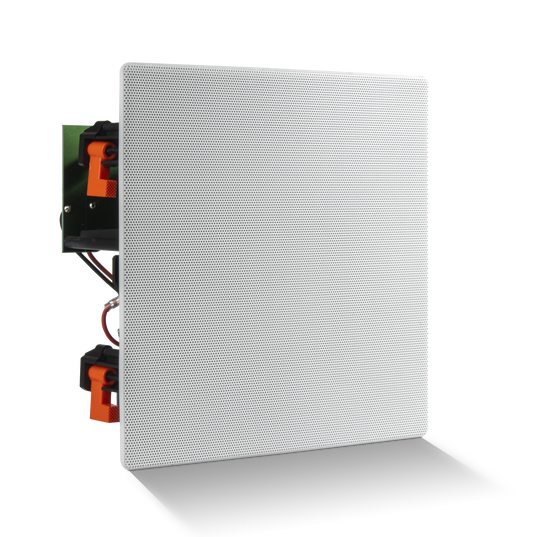

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Thông số và Tải về

Mục# JBL260CSA

Mô tả sản phẩm

Stage 260CSA

The angled design of the Stage 260CSA allows for accurate aiming of the 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.

thông tin chi tiết

High Frequency Transducer 1" (25mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer 6.5" (165mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range) 20-100W RMS
Frequency Response 50Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m) 87dB
Nominal Impedance 8ohm
Crossover Frequency 2800Hz
Inputs Nickel-plated spring-loaded connectors
Grille Dimensions H 9.8in (248mm) x W 9.8in (248mm)
Cutout Dimensions H 8.6in (219mm) x W 8.6in (219mm)
Mounting Depth 5in (127mm)
Product Weight (Kg) 2.2Kg
Shipping Carton Dimensions L 12in (306mm) x W 12in (306mm) x H 6.2in (158mm)
Shipping Carton Weight 6.66lbs (3.02Kg)
