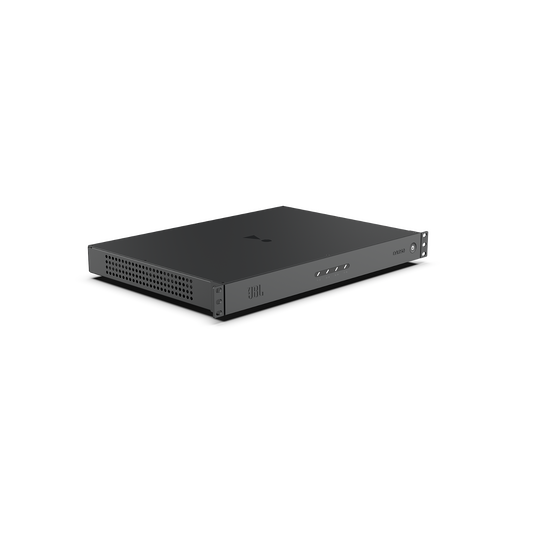

DA850
Engineered to work with any JBL architectural loudspeaker to deliver a fantastic high-resolution audio experience throughout the home, the DA850 provide 4 zones of audio in a compact 1U design, providing maximum performance while taking up minimal rack space. Further configurability is supported with bridging of its Class D stereo channels into even more powerful mono outputs when needed. Each zone can have an independent source or share an audio source across all zones using the global audio input. Expand zones sharing an audio source across multiple amplifiers using the global audio output.
Promotions
Variations
Features
Compact form factor in a single rack space, flat-stackable design
Bridgeable outputs for high-power requirements
Over-current and thermal protection prevent potential speaker damage
Three power mode control options include 12V trigger, audio sensing inputs or always on
Local and bus inputs, stereo/mono selection, and channel output level controls
Specs & Downloads
Item# JBLDA850AS
Product Description
8-channel distribution amplifier
Engineered to work with any JBL architectural loudspeaker to deliver a fantastic high-resolution audio experience throughout the home, the DA850 provide 4 zones of audio in a compact 1U design, providing maximum performance while taking up minimal rack space. Further configurability is supported with bridging of its Class D stereo channels into even more powerful mono outputs when needed. Each zone can have an independent source or share an audio source across all zones using the global audio input. Expand zones sharing an audio source across multiple amplifiers using the global audio output.
General Specifications
Analog audio input
8 x RCA (Single Ended)
Stereo analog global output (global input looped to global output)
2 x RCA (Single Ended)
Speaker output
Phoenix block connectors, accommodates up to 12AWG wire
12V trigger control
1 x 3.5mm (in), 1 x 3.5mm (out)
Power
Standard IEC
Global input select
4 x 2-position dip switches
Bridge/Mono select
4 x 2-position dip switches
Power Mode select
1 x 3-position switch – always on, 12V, auto sense
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)
50W
Rated Power (1kHz, 20ms burst, 2 channels driven, 0.5% THD max, 8Ω)
50W
Rated Power (1kHz, 20ms burst, 2 channels driven, 0.5% THD max, 4Ω)
110W
Rated Power (8Ω Bridged, one zone driven)
185W
Frequency Response
20Hz-20kHz +/-0.5dB, at 1/8th power, all loads
THD+N (max), at rated power, 20-20kHz
<0.1%
Signal to noise ratio (min), A-weight, 20-20kHz, 8Ω mode
>100dB
Crosstalk between any zones, at 1/8th power
-80dB
Minimum output impedance
2.7Ω
Analog input impedance
20kΩ
Signal sense, wake up level
1.75 mVrms
Max undistorted analog input signal
4.6 Vrms
Fan noise, maximum, 1/8 power
50dBA SPL @ 1 meter
Power supply
Universal Mains 100–240VAC 50-60Hz
Standby power consumption
Less than 0.5W
Dimensions (H x W x D)
1.7” x 17.2” x 12.7” (43.7mm x 436.0mm x 323.0mm)
Dimensions inc. feet (H x W x D)
1.75” x 17.2” x 12.7” (44.5mm x 436.0mm x 323.0mm)
Net Weight
4.5kg
