B-8IW
JBL JBLB8IWWHT

B-8IW

8-Inch In-Wall Loudspeaker

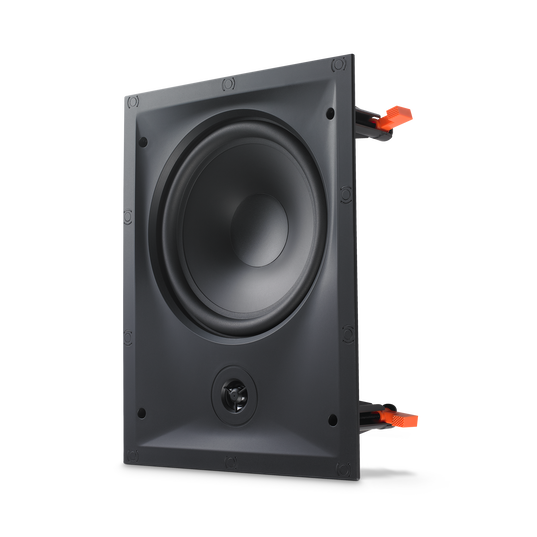

The JBL B-8IW is a 2-way in-wall loudspeaker with a 0.5-inch polymer tweeter and an 8-inch Poly cone woofer. A zero-bezel magnetically attached grille allows the loudspeaker to blend into any décor for a clean, modern design. The B Series models are easy to install and provide great JBL sound throughout your home.
Promotions
Variations

Features

0.5-inch Polymer tweeter

0.5-inch Polymer tweeter

6.5-inch Poly cone woofer

6.5-inch Poly cone woofer

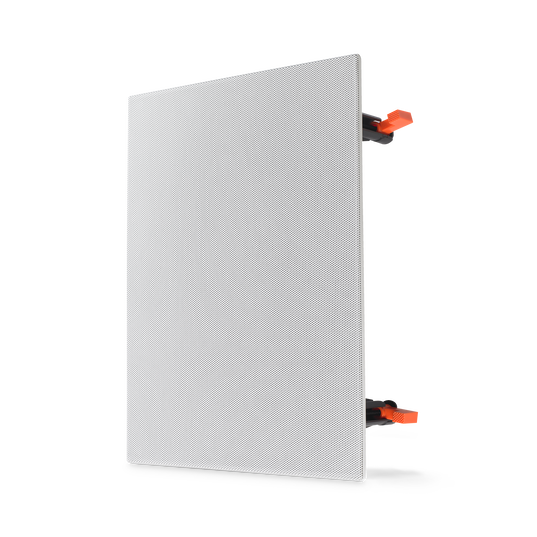

Zero Bezel Grille

Zero Bezel Grille

Easy Installation

Easy Installation

Specs & Downloads

Item# JBLB8IWWHT

Product Description

JBL B-8IW

Designed to blend into your décor and crafted for wide sound dispersion, the JBL B-Series in-ceiling and in-wall loudspeakers feature a modern design, are easy to install and deliver JBL Signature sound throughout your home.

General Specifications

Nominal Impedance 4 ohm
Power (RMS/Peak) 45/160W
Frequency Response 45Hz – 20kHz
Loudspeaker Sensitivity 91dB
Woofer 8" (203mm) Poly woofer
Tweeter 0.5" (13mm) Polymer Tweeter
Cutout Dimensions 11.7” x 8.8” (299mm x 223mm)
Grille Finished Dimensions 10” x 12.9” (255mm x 329mm)
Mounting Depth 3.7" (96mm)

What's in the box?

  • Main Unit
  • Grille
  • Owner’s Manual
  • Wall cut-out template
  • Warranty Card
