Stage XD-5
Featuring a 5.25" (130mm) Polypropylene Graphite Filled Cone Woofer and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage XD-5 all-weather speaker is perfect for an outdoor location when protection from the weather is a requirement. Stylish design and mounting flexibility make it equally at home indoors in a variety of applications. Elements including acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
Promotions

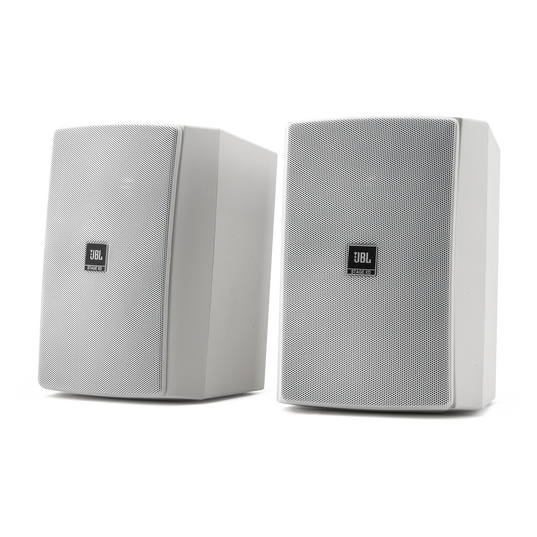

 Pair Angled - 1605x1605.png?sw=537&sfrm=png "Stage XD-5 - White - Hero")

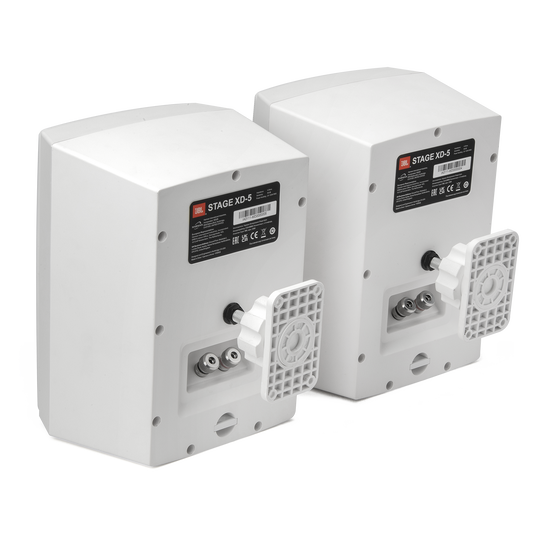

 - Rear with Mount - 1605x1605.png?sw=537&sfrm=png "Stage XD-5 - White - Back")

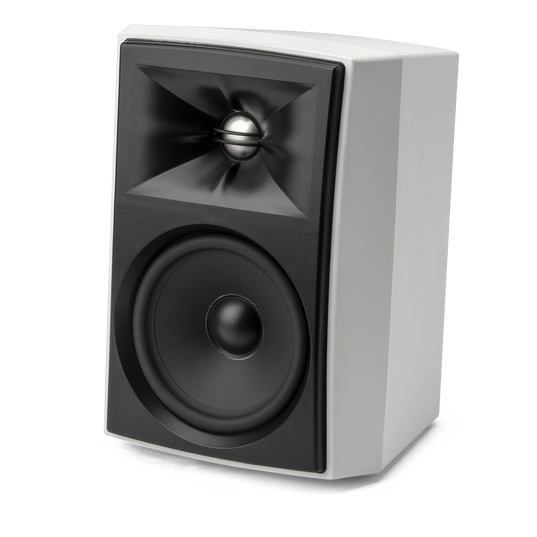

 Single No Grille Angled - 1605x1605.png?sw=537&sfrm=png "Stage XD-5 - White - Left")

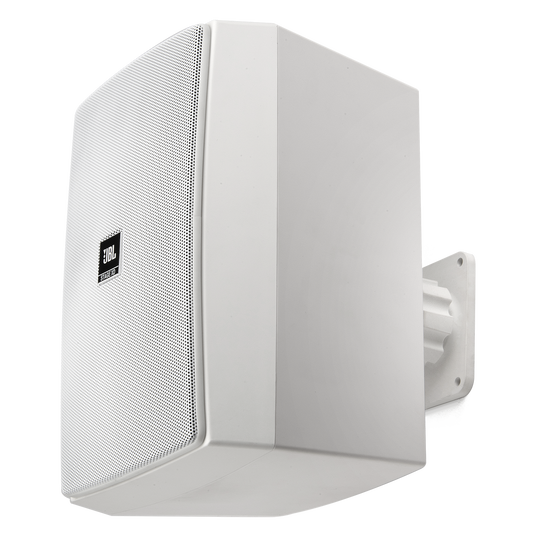

 - Side with Mount - 1605x1605.png?sw=537&sfrm=png "Stage XD-5 - White - Right")
Tính năng

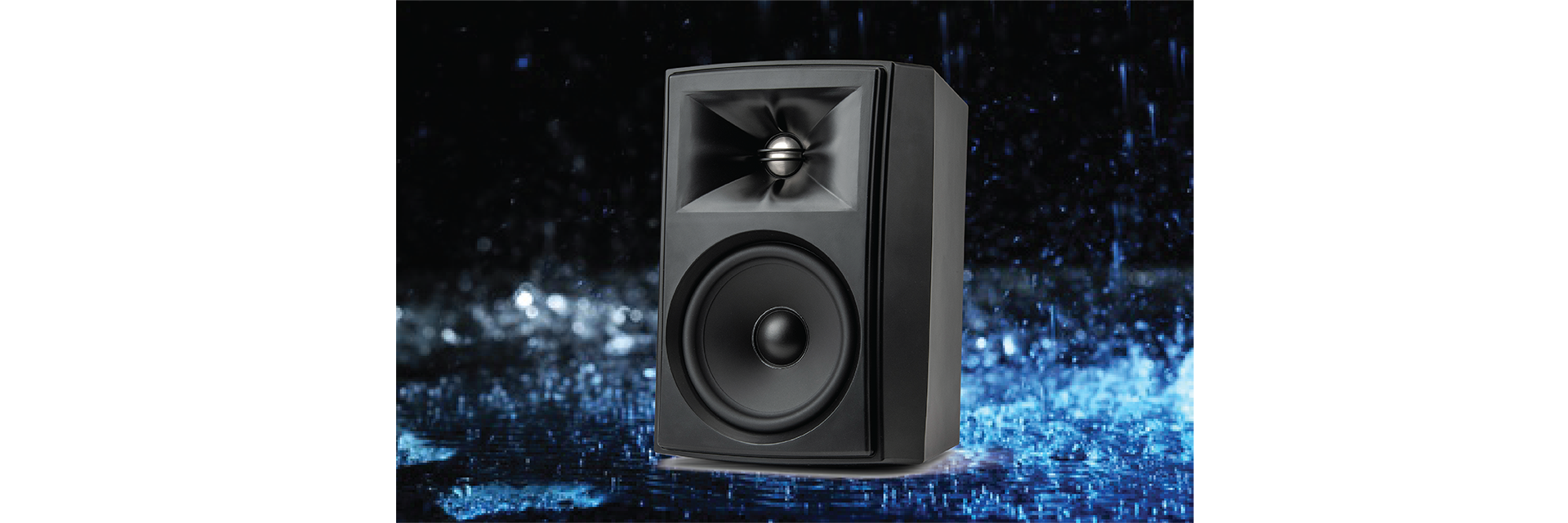

IP67 Waterproof rating provides protection from the harshest of outdoor conditions

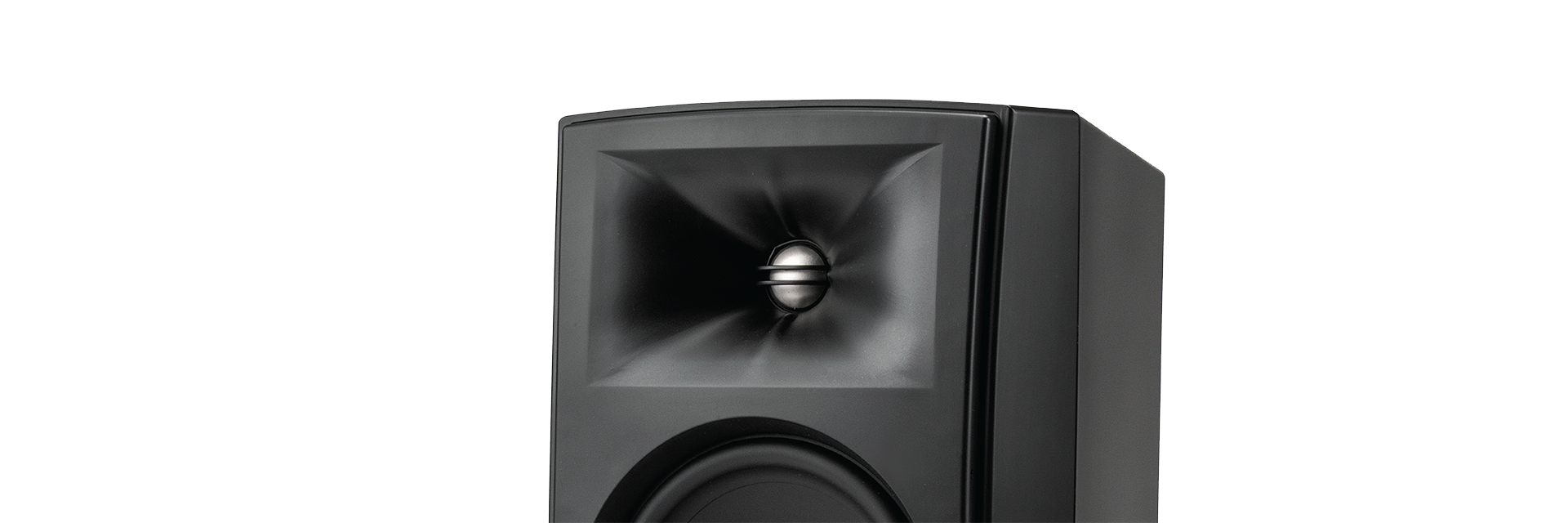

High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

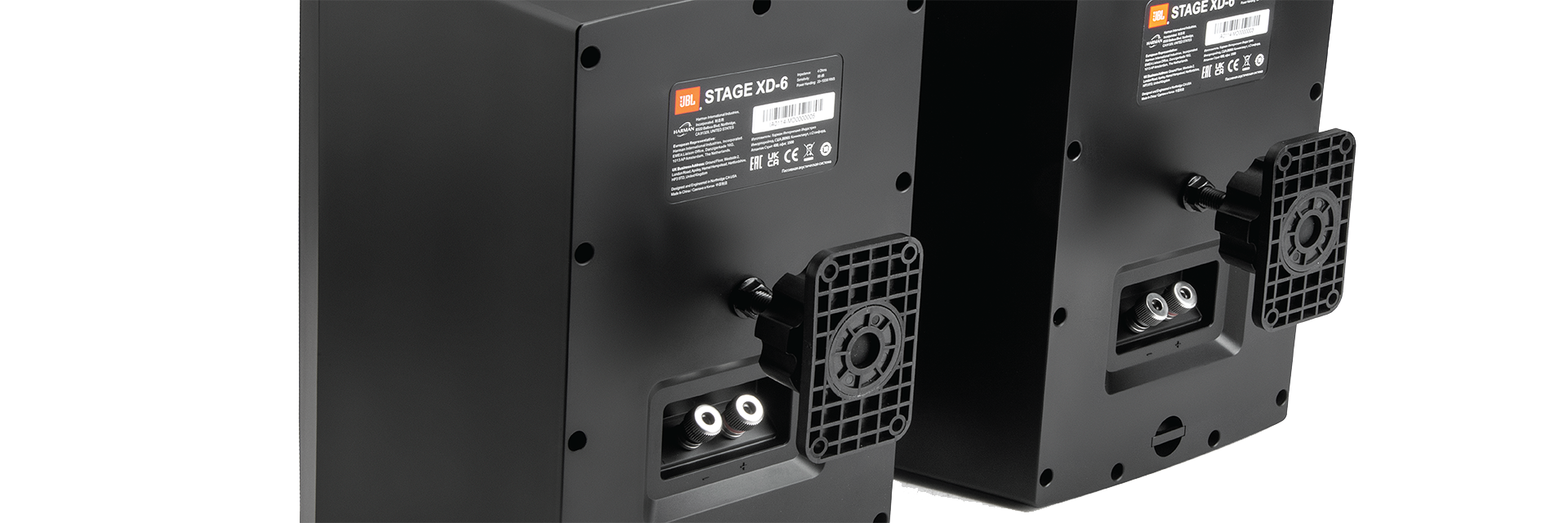

Included wall-mount bracket allows for easy installation and angle adjustment

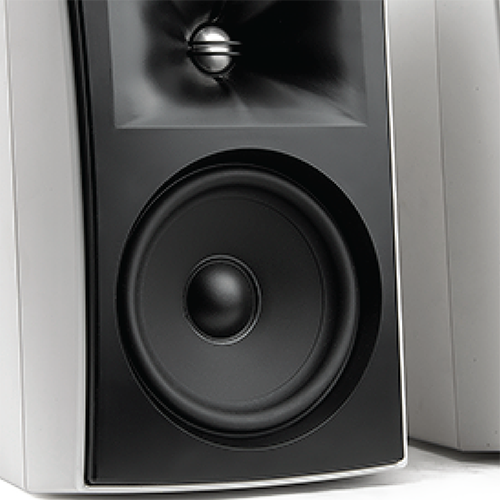

Polypropylene Graphite Filled Cone Woofer

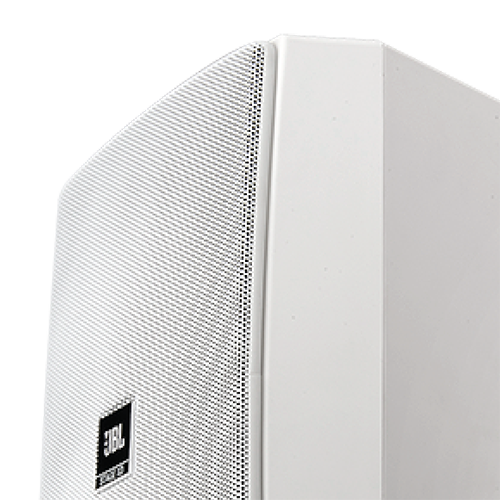

Zero bezel magnetically attached grilles

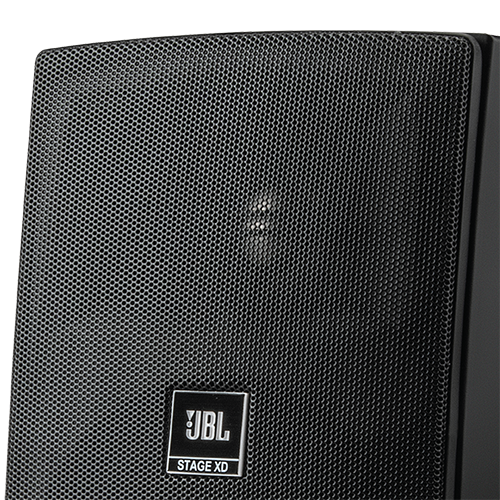

Rotatable logo for horizontal and vertical applications
Thông số và Tải về
Mục# JBLXD5WHT
thông tin chi tiết
Product Type
2-way 5.25" (130mm) Indoor/Outdoor All Weather Loudspeaker
Weatherproof Rating
IP67
High Frequency Transducer
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer
5.25" (130mm) Polypropylene Cone Woofer
Nominal Impedance
6 ohms
Sensitivity (2.83V@1m)
86dB
Recommended Amplifier Power
20-100W RMS
Frequency Response (-6dB On-Axis)
75Hz-25kHz
Crossover Frequency
2500K
Operating Temperature
-31° F (-35° C) to 167° F (75° C)
Product Dimensions (HxWxD)
9.9in (250.0mm) x 7.0in (179mm) X 6.4in (162mm)
Product Weight
2.3lbs (5kg)
Wall Mount Extension
2.8in (71mm)
Beauty Carton Dimensions (HxWxD)
12.6in (320mm) x 16.4in (416mm) X 10.1in (256mm)
Beauty Carton Weight
12.2lbs (5.5kg)
Beauty Carton Quantity
1pr
Master Carton Dimensions (HxWxD)
13.4in (340mm) x 31.1in (788mm) X 17.0in (430mm)
Master Carton Weight
37.5lbs (17kg)
Master Carton Quantity
3pr
