Stage 260W
The Stage 260W has a 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
Promotions
Variations

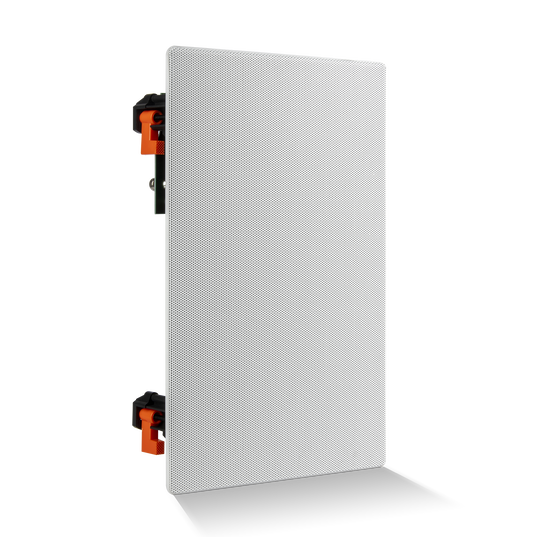

 Angled with Grille - 1605x1605.png?sw=537&sfrm=png "Stage 260W - Black - 2-way 6.5in (166mm) In-Wall Loudspeaker - Hero")

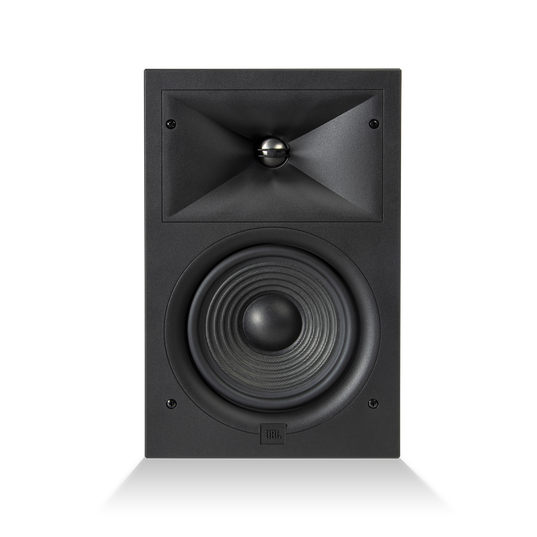

 Front No Grille - 1605x1605.png?sw=537&sfrm=png "Stage 260W - Black - 2-way 6.5in (166mm) In-Wall Loudspeaker - Front")

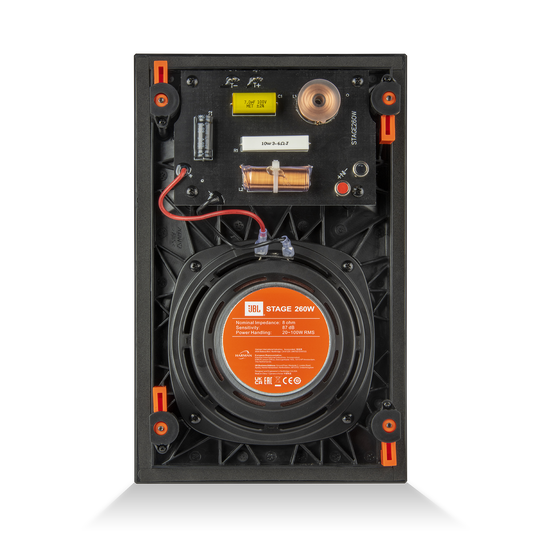

 Rear - 1605x1605.png?sw=537&sfrm=png "Stage 260W - Black - 2-way 6.5in (166mm) In-Wall Loudspeaker - Back")

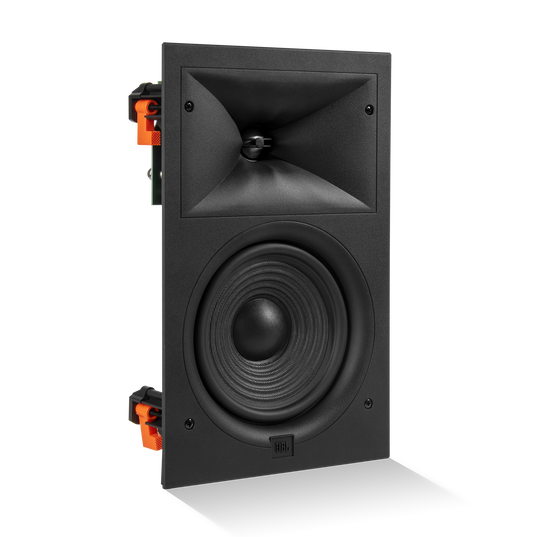

 Angled No Grille - 1605x1605.png?sw=537&sfrm=png "Stage 260W - Black - 2-way 6.5in (166mm) In-Wall Loudspeaker - Left")

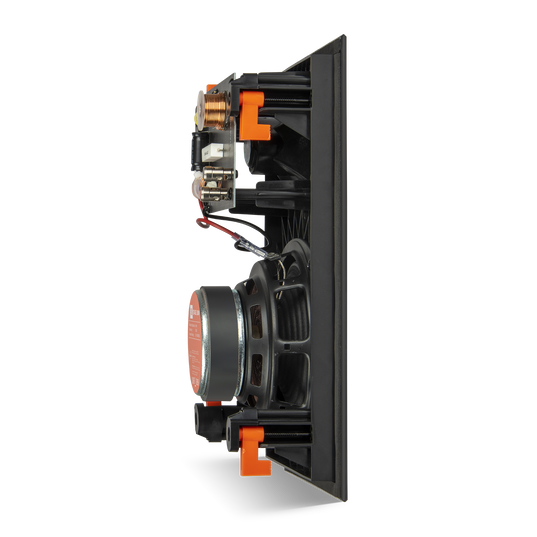

 Side - 1605x1605.png?sw=537&sfrm=png "Stage 260W - Black - 2-way 6.5in (166mm) In-Wall Loudspeaker - Right")
Tính năng
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
6.5" (165mm) Polycellulose cone woofer
Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.
Rigid Baffle design with acoustic smoothing for improved transducer integration
XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.
Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
Thông số và Tải về
Mục# JBL260W
Mô tả sản phẩm
Stage 260W
The Stage 260W has a 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
thông tin chi tiết
High Frequency Transducer
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) Waveguide
Low Frequency Transducer
6.5" (165mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)
20-100W RMS
Frequency Response
50Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)
87dB
Nominal Impedance
8ohm
Crossover Frequency
1900Hz
Inputs
Nickel-plated spring-loaded connectors
Grille Dimensions
H 13.3in (339mm) x W 8.5in (217mm)
Cutout Dimensions
H 12.2in (311mm) x W 7.2in (184mm)
Mounting Depth
3.6in (92mm)
Product Weight (Kg)
2.2Kg
Shipping Carton Dimensions
L 15.6in (396mm) x W 10.8in (274mm) x H 5.1in (130mm)
Shipping Carton Weight
6.48lbs (2.94Kg)
bản hướng dẫn & Tải về
Hướng dẫn sử dụng mới nhất, Hướng dẫn nhanh cùng các tài liệu khác.
